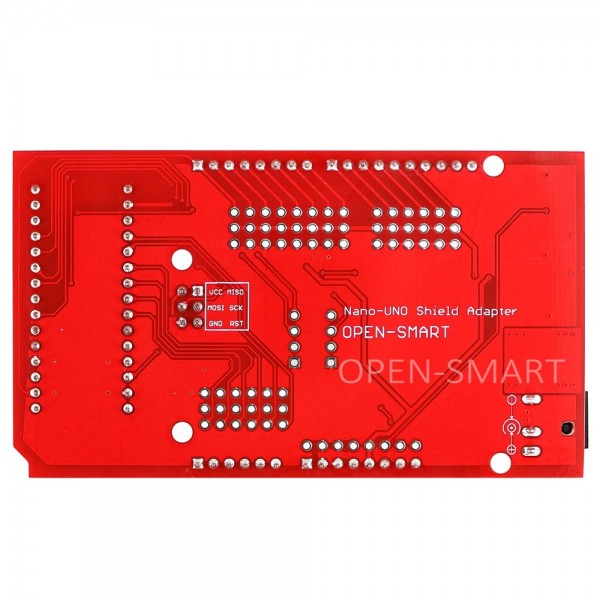

Open-Smart Nano IO Expansion Board - Nano-Uno Shield

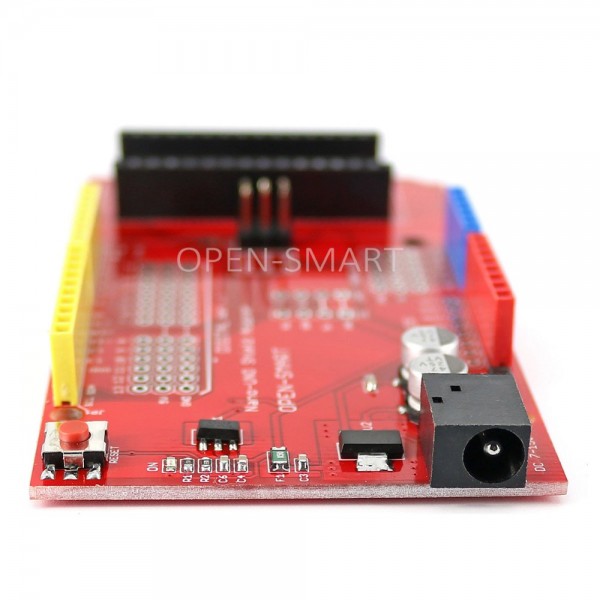

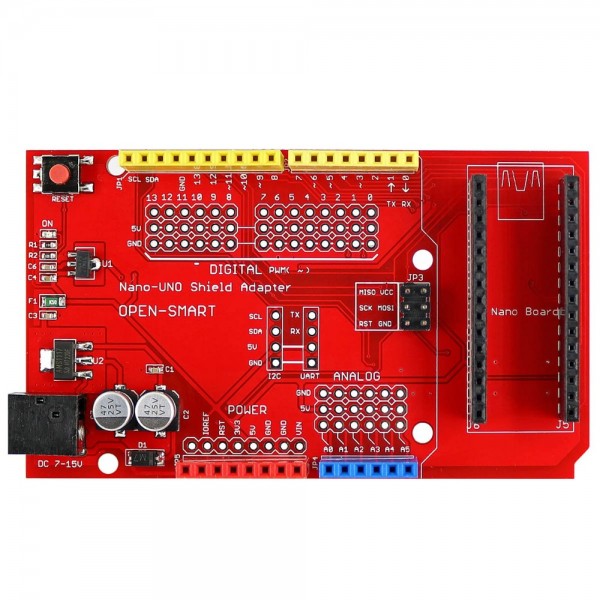

This Open-Smart Nano IO Expansion Board is a shield for the Arduino (Or Arduino compatible) Nano, with which you can give the Nano an Uno layout. In addition to the Uno layout, all Digital I/O pins and Analog pins have an extra pin, and 5V and GND have multiple pins to use. There are also extra pins for I2C and UART communication on this shield and you can now also supply your Nano with power through the built-in DC Jack.

Specifications:

• Suitable for Arduino Nano or a compatible versions
• Shield is compatible with the pin definitions of the UNO R3
• Handy I2C, SPI and UART (RX/TX) pins available
• External input voltage: 7-15VDC
• Built-in 500mA resettable fuse.

Package Contents:

• 1x Open-Smart Nano IO Expansion Board

Note: no Arduino Nano or compatible version is included with this shield.
