LilyGO T-FPGA Shield

LilyGO T-FPGA Shield
LilyGO T-FPGA Shield
LilyGO T-FPGA Shield
LilyGO T-FPGA Shield
LilyGO T-FPGA Shield
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005222
€6.50
Ex Tax: €5.37

This is an expansion shield for the LilyGO T-FPGA.

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO T-FPGA Shield

This product has 0 review(s) in total.

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H631
Model revision V0.2

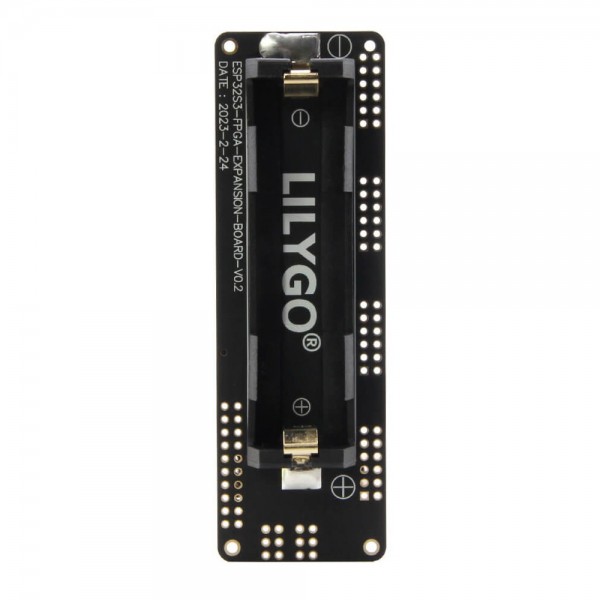

Features Battery holder
General physical appearance
Main color Black
Weight [g] 22
Dimension X [mm] 103
Dimension Y [mm] 33
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
Battery holder
Suitable battery form factor 18650
Suitable anode shape Button top
Flat top
Suitable number of batteries 1
Connectors
Connector type(s) JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)

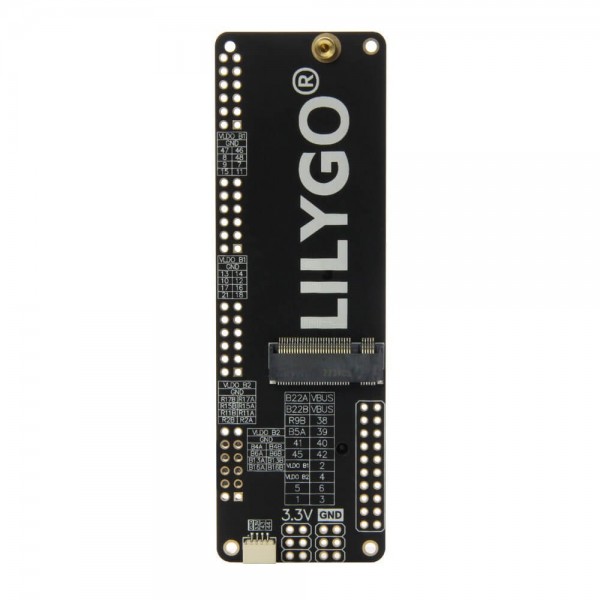

M.2 B-key female
Package contents
Package contents 1x T-FPGA Shield
3x Male pin header 2x3p
1x Male pin header 2x10p
4x Female pin header 2x6p - 90 degrees
1x Mounting bolt
