Keyestudio Sensor Shield V5

Availability: Directly available from warehouse in Eindhoven
SKU: 006348

Based on 0 review(s) - Write a review

€5.00

Ex Tax: €4.13

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

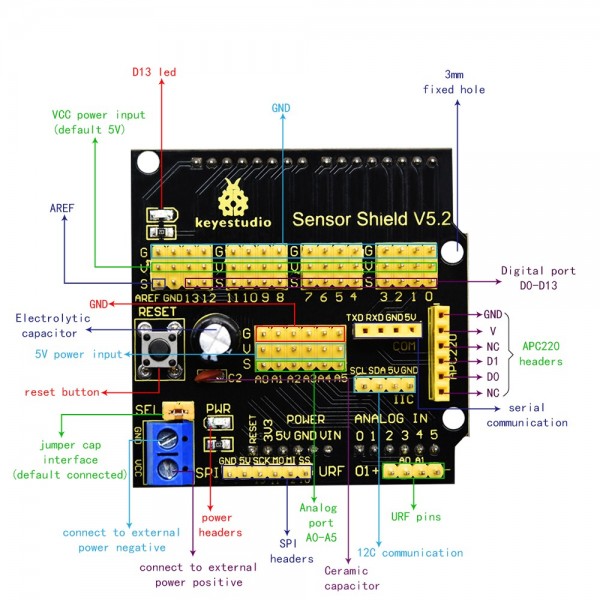

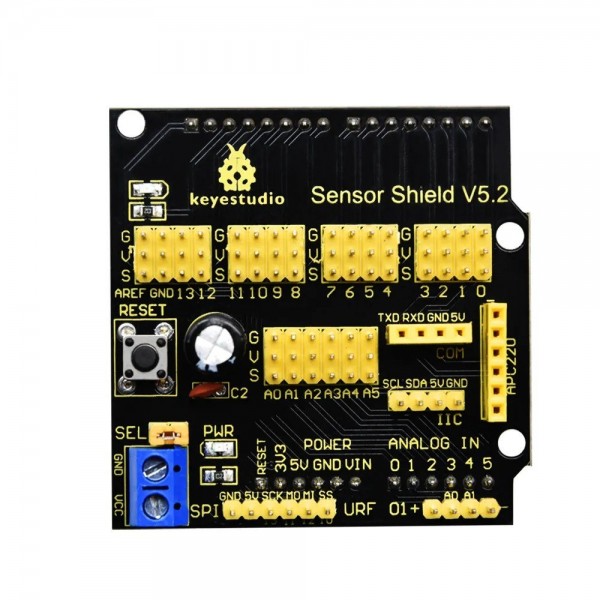

The Keyestudio Sensor Shield is compatible with the Arduino Uno, allowing you to use multiple sensors. The sensor shield also offers multiple 3-pin interfaces (G, V, S) for direct connection to 3-pin modules such as sensors or servos.

The V(cc) pins on the shield can be powered via the Uno or externally via the screw terminal. Note: If you power the shield externally with the screw terminal, remove the jumper next to the terminal.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Keyestudio Sensor Shield V5

Average Rating:

This product has 0 review(s) in total.

Tags: Keyestudio Sensor Shield V5 , KS0004 , Adapter Boards

Specifications

General
Brand	Keyestudio
Manufacturer model/SKU	KS0004
General physical appearance
Main color	Black
Weight [g]	22
Dimension X [mm]	57
Dimension Y [mm]	57
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.5
Form factor	Module (general) Uno layout/shield
General electrical properties
Maximum supply voltage [V DC]	15 (via screw terminal with jumper removed)
Connectors
Power supply connector(s)	Screw terminal Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x Sensor shield V5
