ESP32-S3 SuperMini Expansion Board

ESP32-S3 SuperMini Expansion Board
ESP32-S3 SuperMini Expansion Board
ESP32-S3 SuperMini Expansion Board
New
ESP32-S3 SuperMini Expansion Board
ESP32-S3 SuperMini Expansion Board
ESP32-S3 SuperMini Expansion Board
ESP32-S3 SuperMini Expansion Board
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007219
€4.75
Ex Tax: €3.93

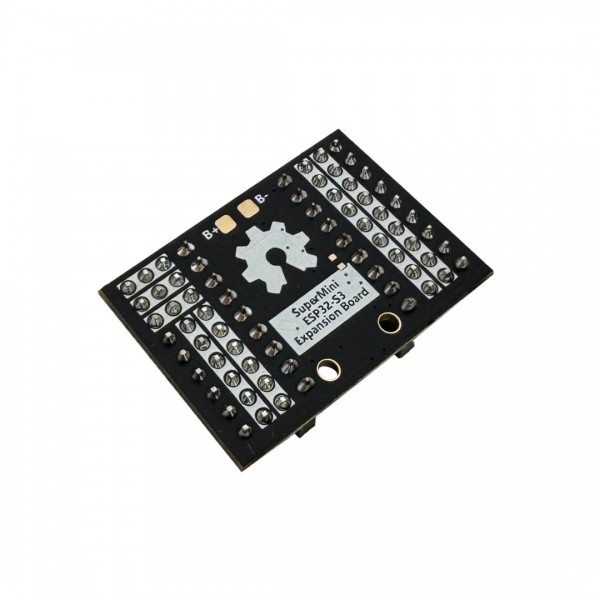

ESP32-S3 SuperMini Expansion Board is an expansion board specially designed for ESP32-S3 SuperMini Development Board. In addition to the convenient pins, the module also has a battery charger.

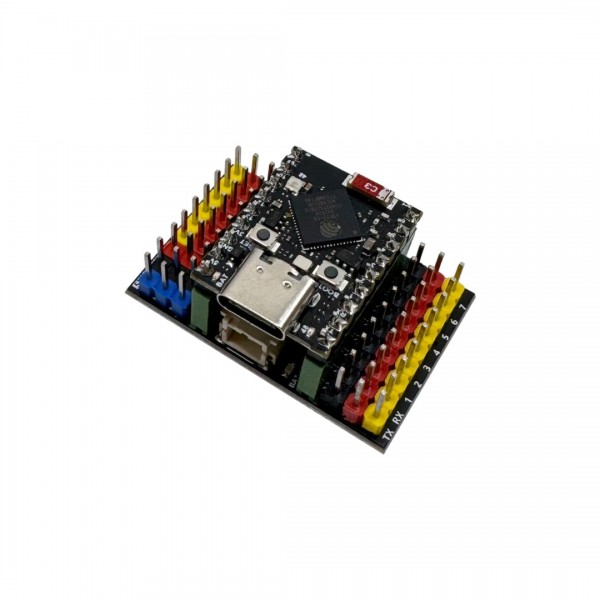

Note: When inserting the SuperMini, make sure that the USB connector and the battery connector are on the same side (see images).

Note: No ESP32-S3 SuperMini is included.

Please login or register to review

Reviews Over ESP32-S3 SuperMini Expansion Board

This product has 0 review(s) in total.

Specifications

General
Brand Nologo
Features Battery charger
General physical appearance
Main color Black
Weight [g] 9
Dimension X [mm] 37
Dimension Y [mm] 25
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 6
Battery circuit
Battery charger chip/SoC TP4054
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 100
Adjustable charging current No
Protection circuit No
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Battery connector(s) JST-PH (compatible) male
Package contents
Package contents 1x Expansion Board
