Name: DFRobot IO Extender for micro:bit - V2.0 - DFROBOT-MBT0008
Brand: DFRobot
SKU: 007115
Price: 6.75 EUR
Availability: InStock

DFRobot IO Extender for micro:bit - V2.0

New

DFRobot IO Extender for micro:bit - V2.0

Based on 0 review(s) - Write a review

€6.75

Ex Tax: €5.58

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

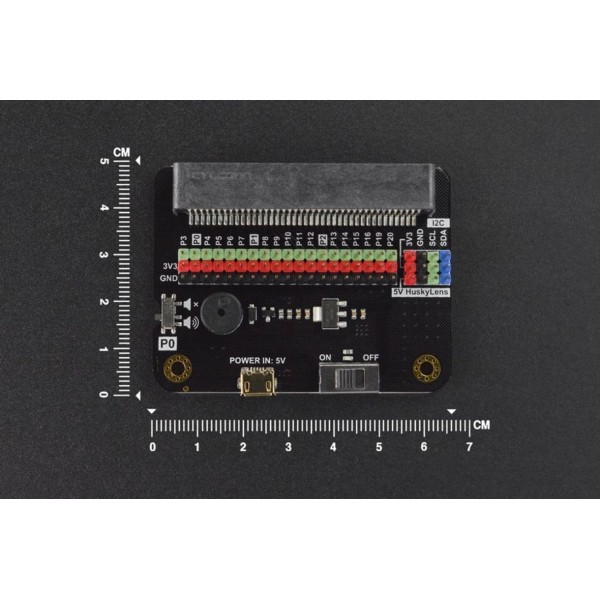

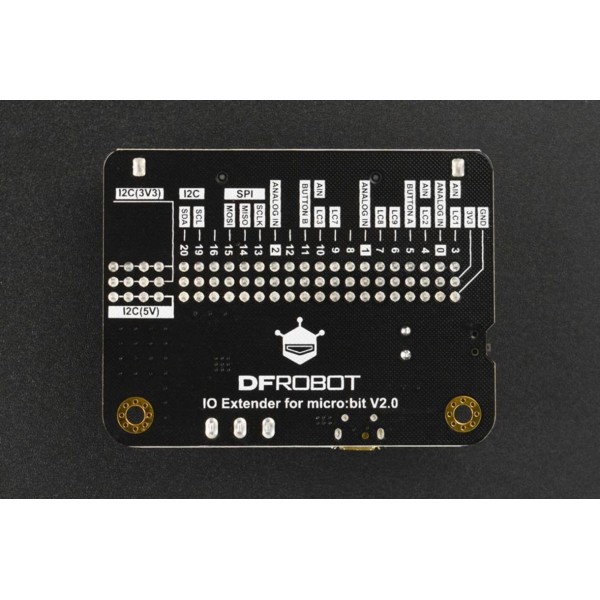

This IO Extender is an expansion board compatible with the micro:bit edge connector.

Note: No micro:bit board is not included.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: DFRobot IO Extender for micro:bit - V2.0 , DFROBOT-MBT0008 , Adapter Boards

General
Brand	DFRobot
Manufacturer model/SKU	MBT0008
Features	Speaker/buzzer Voltage converter
General physical appearance
Main color	Black
Weight [g]	26
Dimension X [mm]	66
Dimension Y [mm]	51
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Speaker
Speaker type	Buzzer
Active/passive	Passive
Connectors
Power supply connector(s)	Micro USB female Micro:bit edge female Pin header male (2.54mm)
IO-connector(s)	Micro:bit edge female Pin header male (2.54mm)
Package contents
Package contents	1x IO Extender board V2.0
