Name: BIGTREETECH PI4B Adapter Board V1.0 - for CM4/CB1 - BTT-PI4B-ADAPTER-V1.0
SKU: 005541
Price: 17.25 EUR
Availability: InStock

BIGTREETECH PI4B Adapter Board V1.0 - for CM4/CB1

Availability: Directly available from warehouse in Eindhoven
SKU: 005541

Based on 0 review(s) - Write a review

€17.25

Ex Tax: €14.26

10 or more €16.75

20 or more €16.25

50 or more €16.00

100 or more €15.75

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

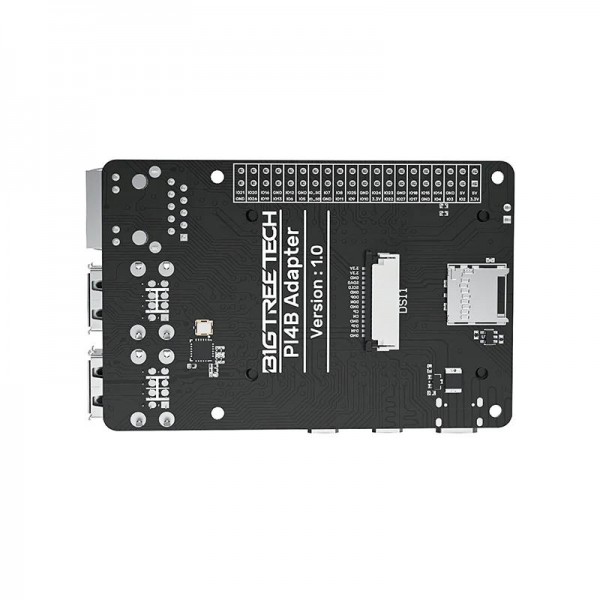

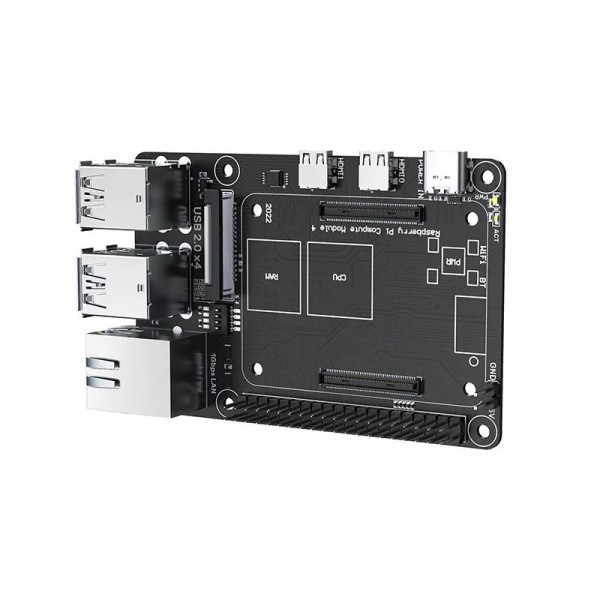

An adapter board for the Raspberry Pi CM4 or CB1 board from BigTreeTech to a RPi 4B layout.
The adapter board has a 40-pin GPIO header, multiple USB en Micro HDMI ports, a Micro-SD card slot and Ethernet connector.
This board also includes CSI and DSI interfaces for optional camera and/or display connections.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over BIGTREETECH PI4B Adapter Board V1.0 - for CM4/CB1

Average Rating:

This product has 0 review(s) in total.

Manual: 005541_BIGTREETECH_PI4B_Adapter_V1.0_User_Manual.pdf

Tags: BIGTREETECH PI4B Adapter Board V1.0 - for CM4/CB1 , BTT-PI4B-ADAPTER-V1.0 , Accessories

Specifications

General
Brand	BIGTREETECH
Manufacturer model/SKU	PI4B Adapter
Model revision	V1.0
Norm conformity	RoHS CE
General physical appearance
Main color	Black
Weight [g]	41

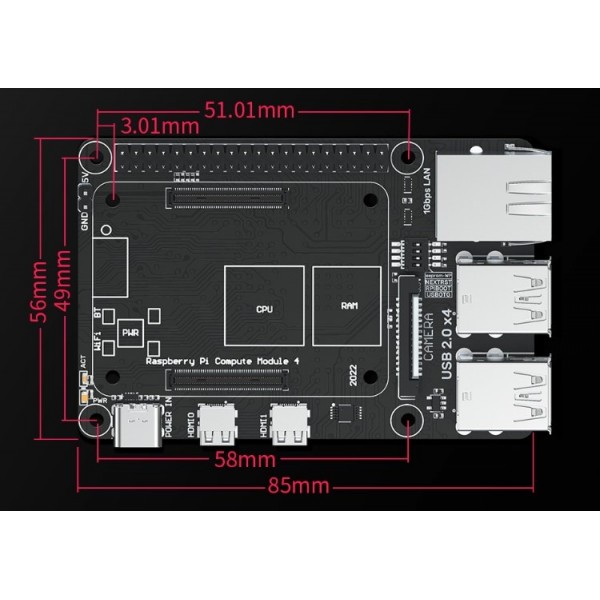

Dimension X [mm]	85
Dimension Y [mm]	56
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.7
Form factor	Raspberry Pi SBC layout/HAT Raspberry Pi CM4 layout
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	CSI HDMI DSI GPIO Ethernet USB
USB classification	USB 2.0
Maximum ethernet transfer speed [Mbit/s]	1000
Supported SD card size	Micro SD
Connectors
Power supply connector(s)	USB-C female
IO-connector(s)	Pin header male (2.54mm) USB-A female USB-C female Micro HDMI female RJ45 female HRS DF40 100p female FFC female 15p 1.00mm
Package contents
Package contents	1x PI4B Adapter Board 6x M3 Bolt 6x M3 Nut
