BIGTREETECH Octopus V1.1 - 3D Printer Motherboard

The BigTreeTech Octopus is one of the most comprehensive 3D printer motherboards available. The board is powered by a powerful 32-bit processor and runs on Marlin or Klipper firmware. The firmware can be easily uploaded and updated with an SD card (not included). You can print from a USB stick or directly from a PC or Raspberry Pi via a USB cable. Moreover, extra modules can be connected for additional functions, such as a Power-off resume kit, Auto shutdown after printing, Filament run-out sensor, RGB LEDs (WS2812/neopixel), etc.

Specifications:

• Supply voltage: 24V DC
• Supply voltage motors: 12 - 24V DC (higher is possible, if the stepper motor drivers can handle it, but is not recommended due to the 35V capacitors)
• Supply voltage heated bed: 12 - 36V DC
• Microcontroller:
  • Chip: STM32F446ZET6
• PC connector: USB-C
• Built-in microSD card adapter (microSD card not included)
• Number of supported stepper motor drivers (not included): 8

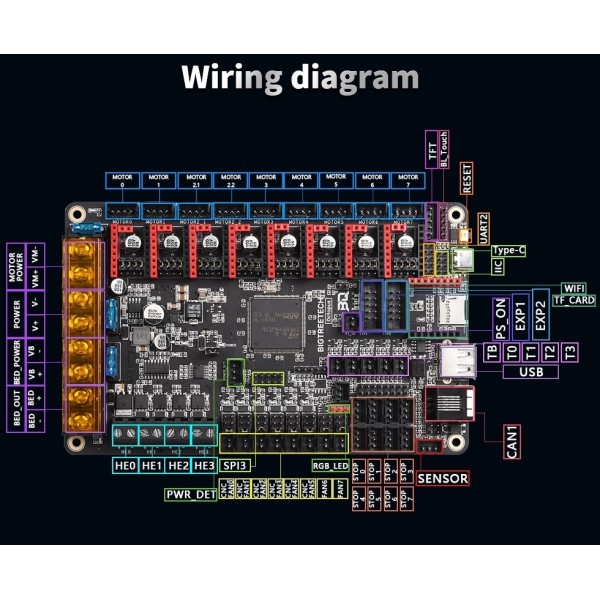

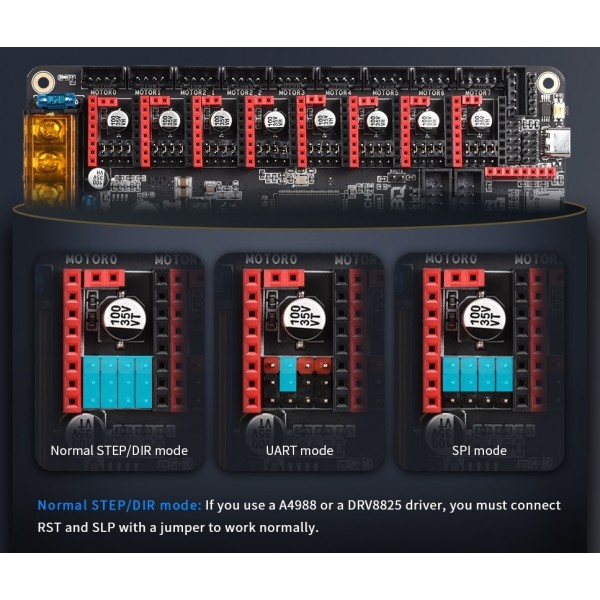

  • Connector: Standard stepper motor driver headers (suitable for A4988, TMC2208, etc., among others)
  • Motor connector: JST-XH 4p (9x, MOTOR2_1 and MOTOR2_2 share a driver)
• Number of supported end stops: 8 (including 2 for filament detection)
  • Connector: JST-XH-2p
• Number of supported heater cartridges: 4
  • Voltage: 24V
  • Maximum power (per cartridge): 60W
  • Connector: Screw terminal
• Maximum power heated bed: 300W
• Number of supported thermistors: 5
  • Connector: JST-XH-2p
• Number of supported fans: 8 (6 PWM, 2 standard)
  • Voltage: 5V, 12V or 24V (adjustable per fan with jumpers)
  • Connector: JST-XH-2p
• Auto-leveling support:
  • 1x Inductive sensor (proximity sensor)
    • Voltage: 5V, 12V or 24V (adjustable with jumpers)
    • Connector: JST-XH 3p
  • 1x BL Touch
• CAN-bus interface (may not yet be supported in (all) 3D printer software):
  • Connector: RJ12 6p

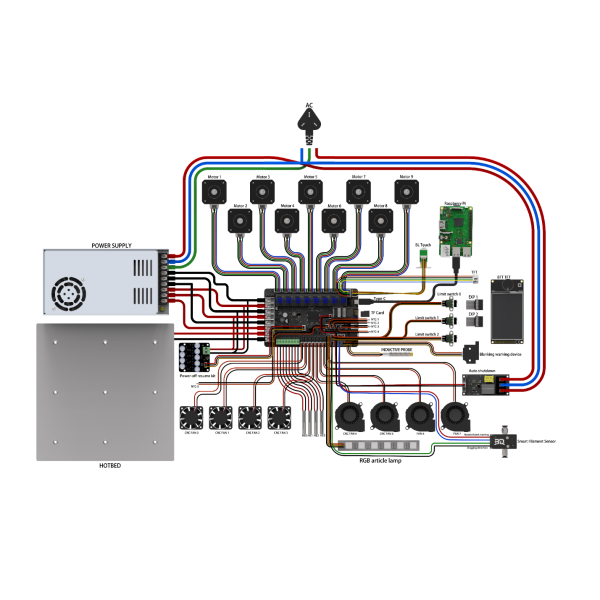

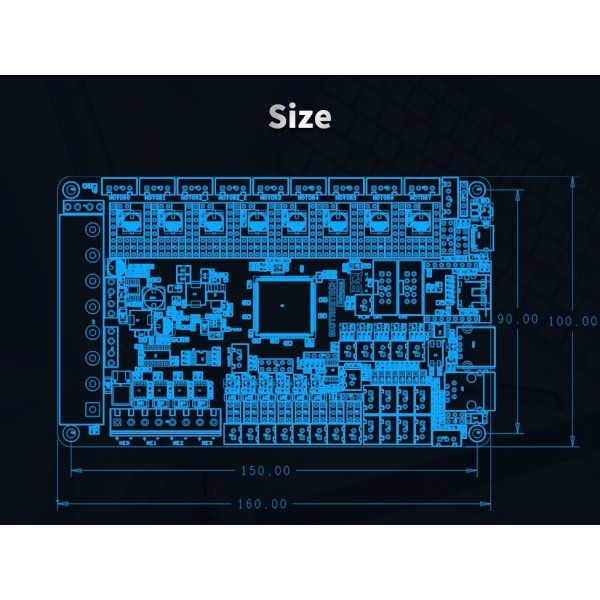

• Dimensions PCB: 160.00 x 100.00mm

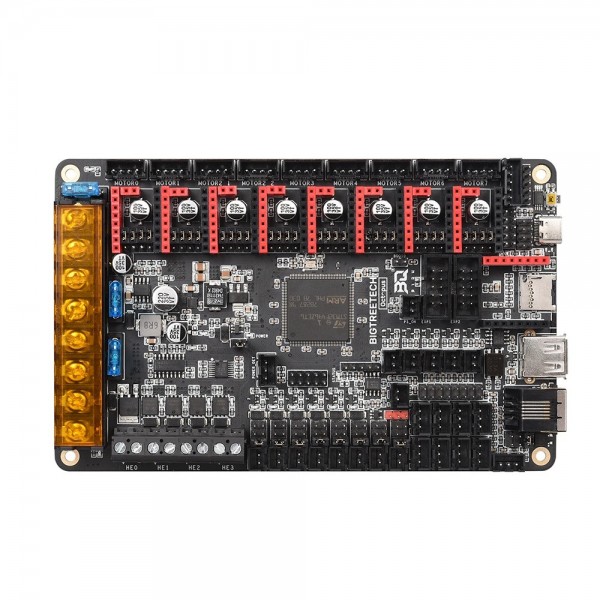

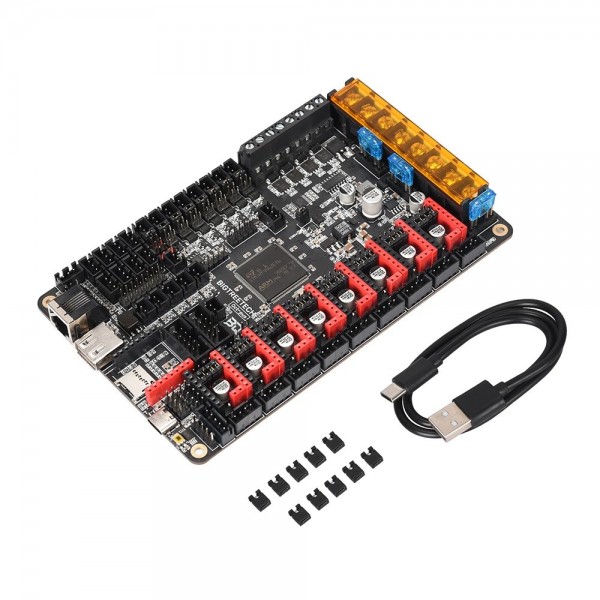

Package contents:

• 1x BIGTREETECH Octopus V1.1
• 1x USB-A to USB-C cable (~50cm)
• 3x Fuse 15A
• 42x Jumper 2p (possibly a few more are included)
• 1x Rubber duck

See the following page for more information: BIGTREETECH-OCTOPUS
