DFRobot Fermion MicroSD Card Module for Arduino

New

DFRobot Fermion MicroSD Card Module for Arduino

Availability: Directly available from warehouse in Eindhoven
SKU: 006200

Based on 0 review(s) - Write a review

€4.25

Ex Tax: €3.51

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

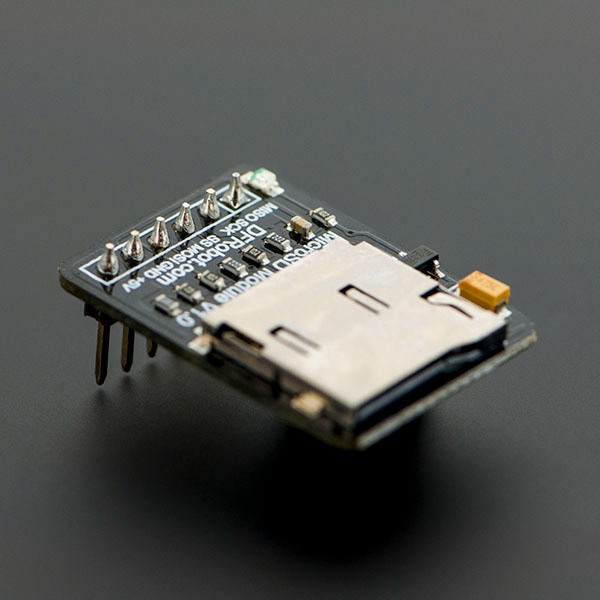

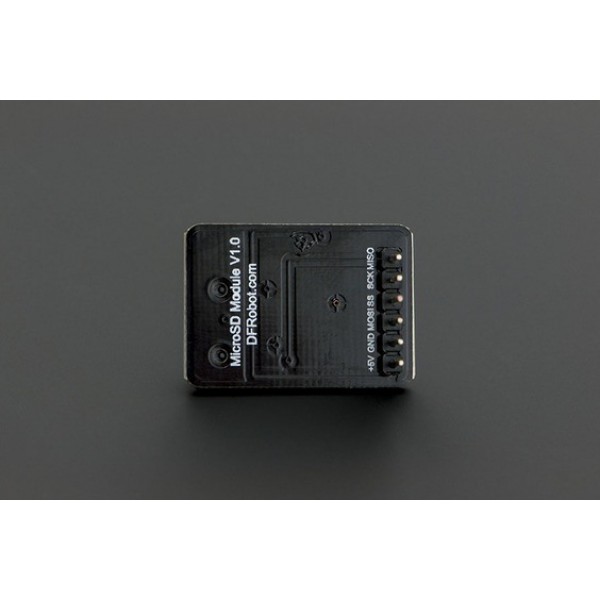

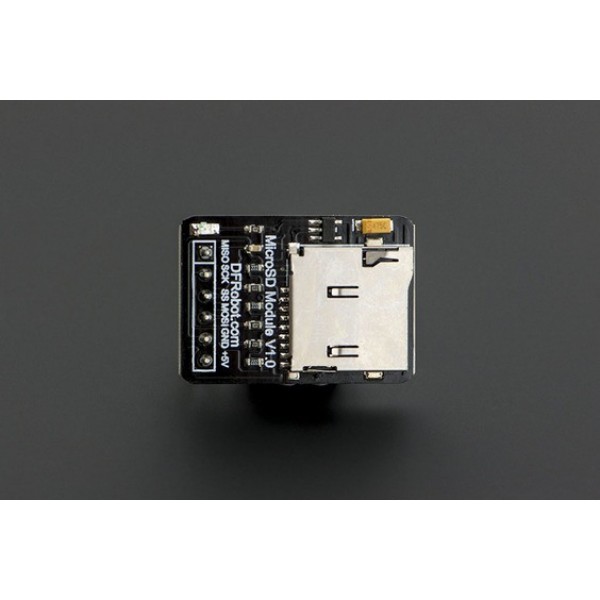

A micro SD card module from DFRobot that is compatible with 5V microcontrollers bacause of the built-in resistor dividers. The pinout is also fully compatible with the expansion shield from DFRobot.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Fermion MicroSD Card Module for Arduino

Average Rating:

This product has 0 review(s) in total.

Schematic: 006200_MicroSD ModuleV1.0_Sch.pdf

Tags: DFRobot Fermion MicroSD Card Module for Arduino , DFROBOT-DFR0229 , Modules

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR0229
Features	SD-card adapter
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	28
Dimension Y [mm]	20
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	5
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	3.3 (from SD card)
Communication
Hardware interface(s)	SPI
Supported SD card size	Micro SD
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x MicroSD Card Module
