Name: LM7805C 5V Voltage Regulator - L7805CV
SKU: 000236
Price: 0.5 EUR
Availability: InStock

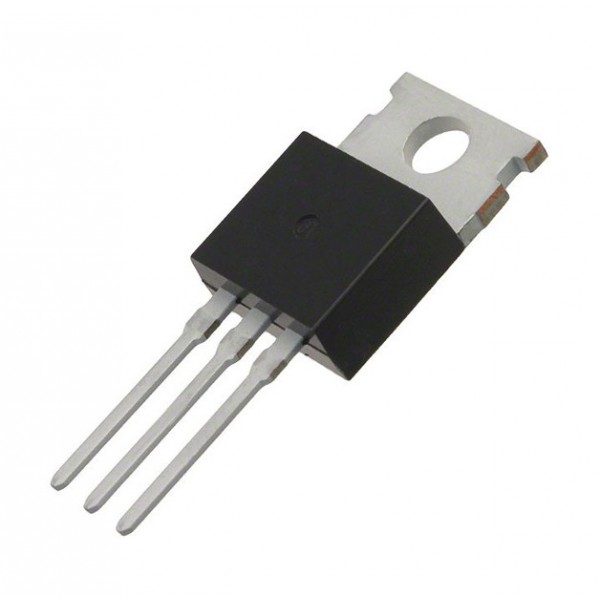

LM7805C 5V Voltage Regulator

Availability: Directly available from warehouse in Eindhoven
SKU: 000236

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.38

100 or more €0.35

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A X linear voltage regulator. The advantage of this type of voltage regulator is that the output voltage almost has no ripple. The disadvantage is that this regulator is not efficient and generates a lot of heat, especially with a large difference between the input and output voltage, and a high output current.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over LM7805C 5V Voltage Regulator

Average Rating:

This product has 0 review(s) in total.

Datasheet: 000236_HGSEMI_LM78xxC_datasheet.pdf

Tags: LM7805C 5V Voltage Regulator , L7805CV , Voltage Regulators

Specifications

General
Brand	HGSemi
Manufacturer model/SKU	LM7805CT
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	15
Dimension Y [mm]	10
Dimension Z [mm]	4.5
Mounting options	Mounting hole(s) THT
Diameter mounting hole(s) [mm]	3.8
Form factor	Individual component
Footprint/package	TO-220
Voltage converter
Chip/SoC	LM7805C
Voltage converter type	Linear regulator/LDO
Conversion	DC-DC
Isolated	No
Output voltage type	Fixed
Constant current function	No
Minimum input voltage [V DC]	7.0
Maximum input voltage [V DC]	35
Minimum output voltage [V DC]	5
Maximum output voltage [V DC]	5
Maximum output current [A]	1.5
Line regulation [%]	2
Load regulation [%]	2
Safety features	Short circuit Overcurrent (output) Temperature
Connectors
Input voltage connector(s)	Solder pin(s) (THT)
Output voltage connector(s)	Solder pin(s) (THT)
Pin distance [mm]	2.54
Package contents
Package contents	1x Voltage converter
