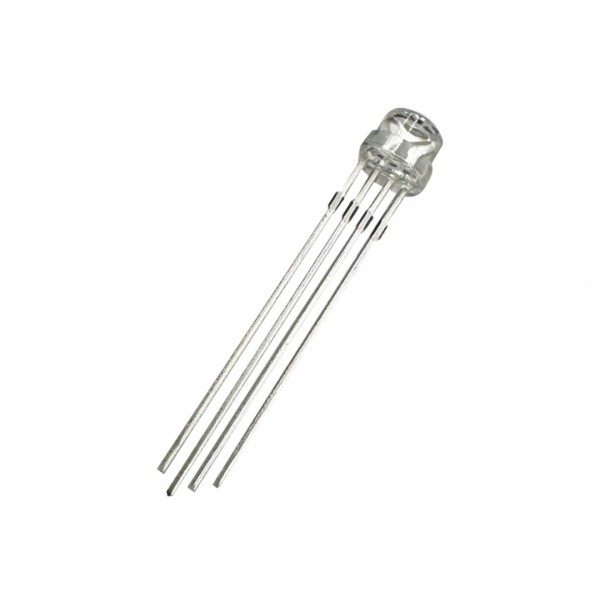

Name: Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped - TZRGBLED5MMDIF-CLEAR-STRAW
SKU: 006413
Price: 0.25 EUR
Availability: InStock

Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped

New

Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped

Availability: Directly available from warehouse in Eindhoven
SKU: 006413

Based on 0 review(s) - Write a review

€0.25

Ex Tax: €0.21

10 or more €0.20

20 or more €0.18

50 or more €0.16

100 or more €0.14

Qty

Add to Cart

Add to wishlist

Other packaging unit: Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped - 1000 pieces

500+ pieces in stock

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

LED resistor calculator
Supply voltage:	V
Forward voltage:	V
Rated LED current:	mA
Nr. of LEDs in series:
Minimum resistor value:	-
Rounded E12 resistor value:	-

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006413_Data_Sheet_of_5mm_RGB_Straw_Hat_(Common_cathode)_Water_Clear_LED.pdf

Tags: Tuozhan RGB LED - 5mm Clear - Common Cathode - Straw Hat Shaped , TZRGBLED5MMDIF-CLEAR-STRAW , LEDs

Specifications

General
Brand	Tuozhan
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	Colorless/transparent
Weight [g]	1
Dimension X [mm]	5
Dimension Y [mm]	5
Dimension Z [mm]	5
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes (if pins are bend)
LED
LED color	RGB
Beam angle [°]	120
Dominant wavelength [nm]	See datasheet
Diode
Type	LED
Diode configuration	Common cathode
Maximum reverse voltage [V DC]	5
Maximum continuous forward current [mA]	30
Maximum leakage current [μA]	10
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Connector/pin width [mm]	0.5
Pin distance [mm]	1.25
Pin length (PCB/short side) [mm]	25
Package contents
Package contents	1x LED
