Name: Tuozhan RG Red and Green LED - 5mm - Diffuse - Common Cathode - TZRG5MMDIFF
SKU: 006733
Price: 0.15 EUR
Availability: InStock

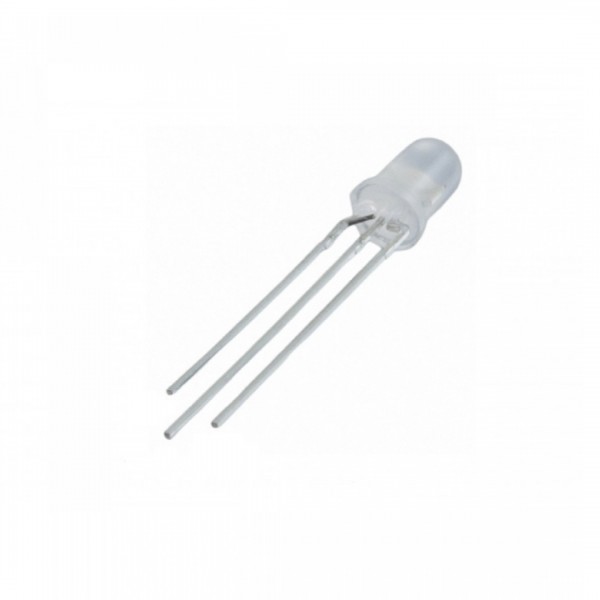

Tuozhan RG Red and Green LED - 5mm - Diffuse - Common Cathode

Based on 0 review(s) - Write a review

€0.15

Ex Tax: €0.12

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Tuozhan RG Red and Green LED - 5mm - Diffuse - Common Cathode , TZRG5MMDIFF , LEDs

General
Brand	Tuozhan
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	White
Weight [g]	1
Dimension X [mm]	5
Dimension Y [mm]	5
Dimension Z [mm]	8.5
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
LED
LED color	RG (red+green)
Beam angle [°]	60
Dominant wavelength [nm]	See datasheet
Diode
Type	LED
Forward voltage [V DC]	See datasheet
Maximum reverse voltage [V DC]	5
Maximum continuous forward current [mA]	20
Maximum leakage current [μA]	10
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Connector/pin width [mm]	0.5
Pin distance [mm]	2.54
Pin length (PCB/short side) [mm]	25.5
Package contents
Package contents	1x LED
