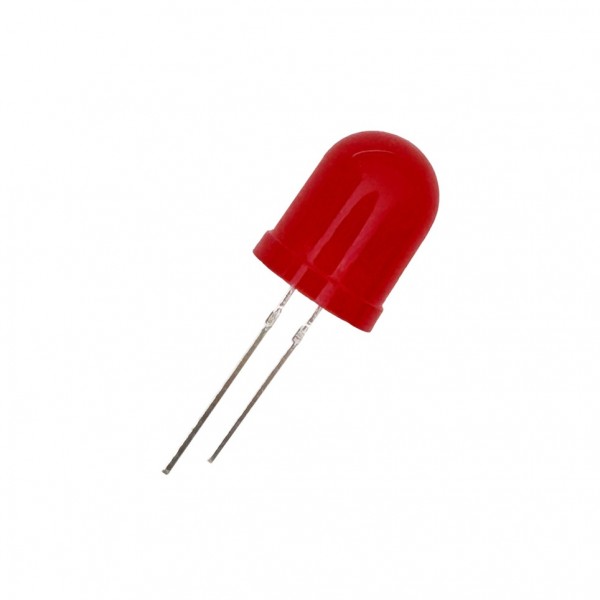

Tuozhan Red LED - 10mm Diffused

Tuozhan Red LED - 10mm Diffused
Tuozhan Red LED - 10mm Diffused
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006473
Based on 0 review(s) - Write a review
€0.15
Ex Tax: €0.12
Add to Cart
Add to wishlist

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

LED resistor calculator
Supply voltage: V
Forward voltage: V
Rated LED current: mA
Nr. of LEDs in series:
Minimum resistor value: -
Rounded E12 resistor value: -



Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Tuozhan Red LED - 10mm Diffused

This product has 0 review(s) in total.

Tags: Tuozhan Red LED - 10mm Diffused , TZRED10MMDIFFUSED , LEDs

Specifications

General
Brand Tuozhan
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
General physical appearance
Main color Red
Weight [g] 2
Dimension X [mm] 10
Dimension Y [mm] 10
Dimension Z [mm] 14
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
LED
LED color Red
Beam angle [°] 45
Dominant wavelength [nm] 622.5
(±2.5)
Diode
Forward voltage [V DC] 2.0
(±0.2)
Maximum reverse voltage [V DC] 5
Maximum continuous forward current [mA] 20
Maximum leakage current [μA] 10
Connectors
Power supply connector(s) Solder pin(s) (THT)
Connector/pin width [mm] 0.5
Pin distance [mm] 2.54
Pin length (PCB/short side) [mm] 15
Package contents
Package contents 1x LED
