Name: Tuozhan LED SMD 0805 - Green - 10 pieces - TZLED0805G-10X
SKU: 006041
Price: 1 EUR
Availability: InStock

Tuozhan LED SMD 0805 - Green - 10 pieces

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

10 or more €0.95

20 or more €0.90

50 or more €0.85

100 or more €0.80

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Tuozhan LED SMD 0805 - Green - 10 pieces , TZLED0805G-10X , LEDs

General
Brand	Tuozhan
Manufacturer model/SKU	TZ-F.0805.00016
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	White
Weight [g]	1
Dimension X [mm]	2
Dimension Y [mm]	1.25
Dimension Z [mm]	0.8
Mounting options	SMT
Form factor	Individual component Set/kit
Footprint/package	0805
LED
LED color	Green
Beam angle [°]	120
Dominant wavelength [nm]	517 (±3)
Diode
Type	LED
Forward voltage [V DC]	3.1 (±0.3)
Maximum reverse voltage [V DC]	5
Maximum continuous forward current [mA]	20
Maximum leakage current [μA]	10
Connectors
Power supply connector(s)	Solder pin(s) (SMT)
Package contents
Package contents	10x LED

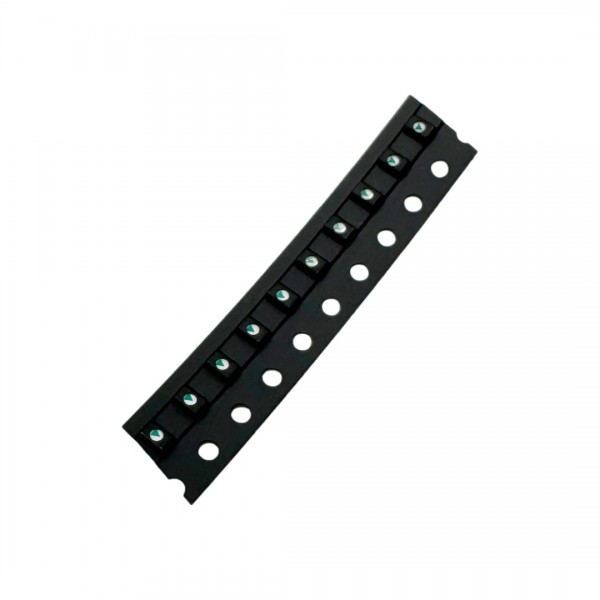

Type of packaging	Reel
