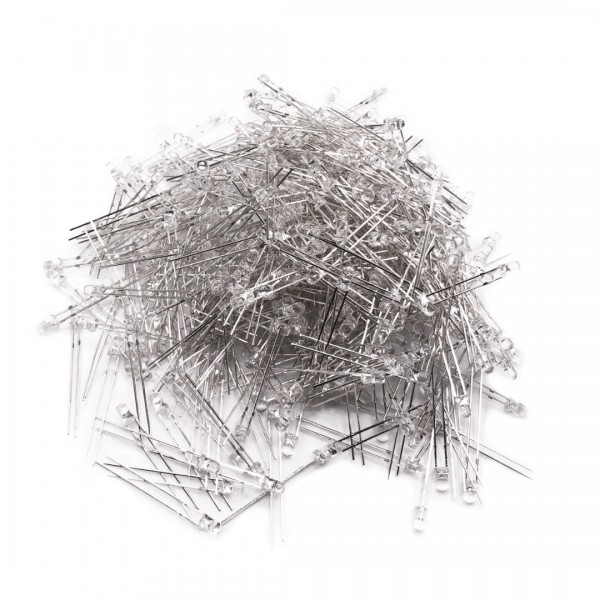

Teng Jie Red LED - 3mm Clear - 1000 pieces

Teng Jie Red LED - 3mm Clear - 1000 pieces
Teng Jie Red LED - 3mm Clear - 1000 pieces
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005249
Based on 0 review(s) - Write a review
€17.75
Ex Tax: €14.67
Add to Cart
Add to wishlist
Other packaging unit: Teng Jie Red LED - 3mm Clear

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

LED resistor calculator
Supply voltage: V
Forward voltage: V
Rated LED current: mA
Nr. of LEDs in series:
Minimum resistor value: -
Rounded E12 resistor value: -



Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Teng Jie Red LED - 3mm Clear - 1000 pieces

This product has 0 review(s) in total.

Tags: Teng Jie Red LED - 3mm Clear - 1000 pieces , LR22122701-1000X , LEDs

Specifications

General
Brand Teng Jie
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 80
General physical appearance
Main color Colorless/transparent
Weight [g] 1
Dimension X [mm] 3
Dimension Y [mm] 3
Dimension Z [mm] 5.3
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
LED
LED color Red
Beam angle [°] 30
Dominant wavelength [nm] 625
(±5)
Diode
Type LED
Forward voltage [V DC] 2.2
(±0.2)
Maximum reverse voltage [V DC] 5
Maximum continuous forward current [mA] 20
Maximum leakage current [μA] 10
Connectors
Power supply connector(s) Solder pin(s) (THT)
Connector/pin width [mm] 0.5
Pin distance [mm] 2.54
Pin length (PCB/short side) [mm] 25.5
Package contents
Package contents (approximately)
1000x LED
Type of packaging Loose
