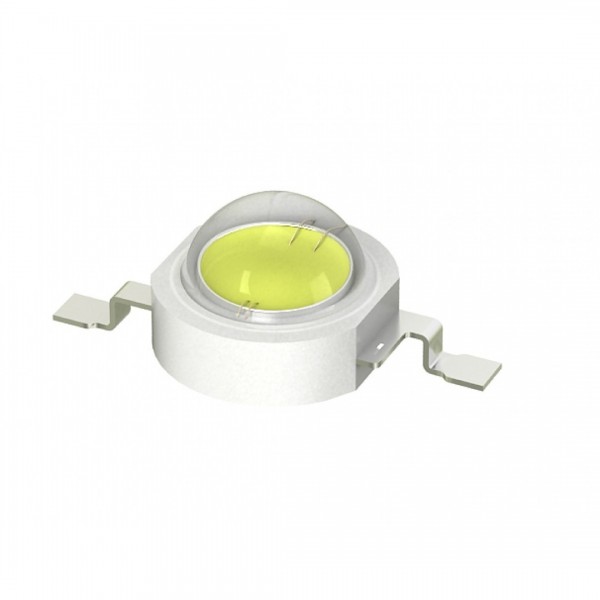

Teng Jie High Power LED 700mA - Warm White

Teng Jie High Power LED 700mA - Warm White
Teng Jie High Power LED 700mA - Warm White
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005219
€0.50
Ex Tax: €0.41

A powerful LED that requires a cooling block.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Teng Jie High Power LED 700mA - Warm White

This product has 0 review(s) in total.

Specifications

General
Brand Teng Jie
Minimum operating temperature [°C] -35
Maximum operating temperature [°C] 120
General physical appearance
Main color White
Weight [g] 1
Dimension X [mm] 8
Dimension Y [mm] 7.5
Dimension Z [mm] 5.1
Mounting options SMT
Form factor Individual component
LED
LED color Warm white
Maximum luminous flux [lm] 260
Beam angle [°] 120
Minimum color temperature [K] 2900
(±1000)
Maximum color temperature [K] 2900
(±1000)
Diode
Type LED
Forward voltage [V DC] 3.3
(±0.3)
Maximum reverse voltage [V DC] 5
Maximum continuous forward current [mA] 700
Maximum leakage current [μA] 10
Connectors
Power supply connector(s) Solder pin(s) (SMT)
Package contents
Package contents 1x LED
Type of packaging Loose
