Name: Teng Jie Blue LED - 3mm Diffused - 1000 pieces - LB22122601-1000X
SKU: 005252
Price: 17.75 EUR
Availability: InStock

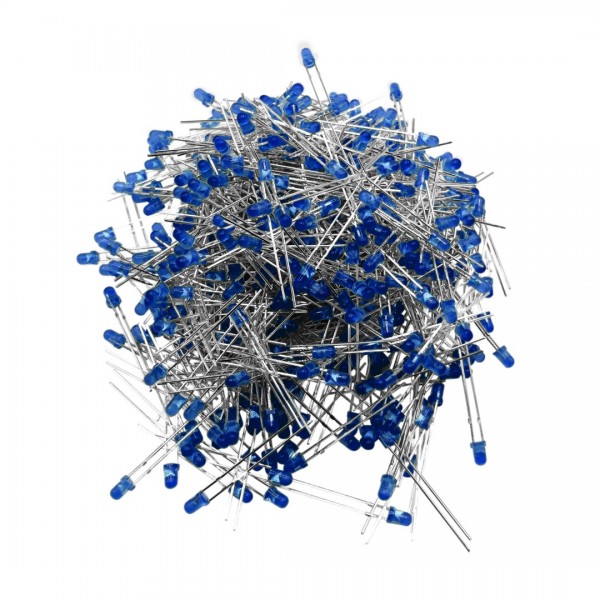

Teng Jie Blue LED - 3mm Diffused - 1000 pieces

Based on 0 review(s) - Write a review

€17.75

Ex Tax: €14.67

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A simple LED.

Note: Don't forget to use an LED series resistor. You can calculate which value is suitable for your application below:

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Teng Jie Blue LED - 3mm Diffused - 1000 pieces , LB22122601-1000X , LEDs

General
Brand	Teng Jie
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	80
General physical appearance
Main color	Blue
Weight [g]	1
Dimension X [mm]	3
Dimension Y [mm]	3
Dimension Z [mm]	5.3
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
LED
LED color	Blue
Beam angle [°]	30
Dominant wavelength [nm]	465 (±10)
Diode
Type	LED
Forward voltage [V DC]	3.0 (±0.2)
Maximum reverse voltage [V DC]	5
Maximum continuous forward current [mA]	20
Maximum leakage current [μA]	10
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Connector/pin width [mm]	0.5
Pin distance [mm]	2.54
Pin length (PCB/short side) [mm]	25.5
Package contents
Package contents	(approximately) 1000x LED
Type of packaging	Loose
