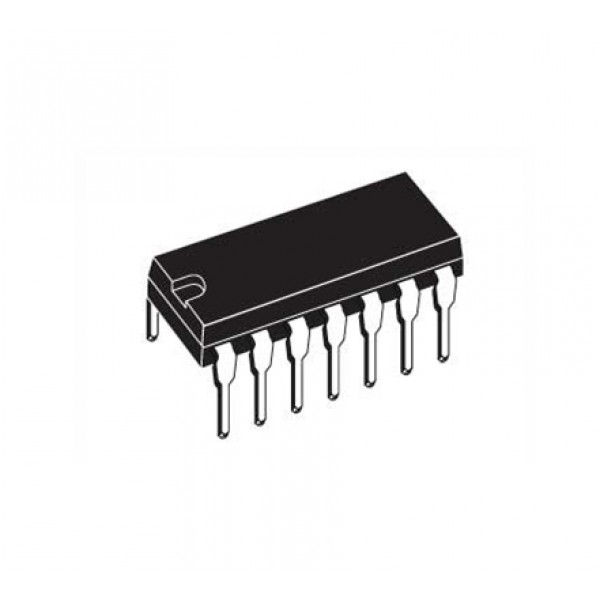

74HC14 Schmitt-Trigger Inverter - 6 Channels - 14-pin DIP

With this chip you can invert a signal with a Schmitt trigger. A Schmitt trigger is a switch that has two voltage thresholds. When the input voltage exceeds the upper level the signal becomes low and when the input voltage falls below the lower level the signal becomes high.

Specifications:

• Supply voltage: 2.0 - 6.0 V DC
• Signal voltage: 0 - 6.0V DC (max. equal to supply voltage)
• V_T+: see the datasheet under the "Downloads" tab
• V_T-: see the datasheet under the "Downloads" tab
• Number of inverters: 6 channels

Package contents:

• 1x 74HC14 6 Channel Schmitt-Trigger Inverter - 14-pin DIP

Check the tab "Downloads" for more information and/or downloads.
