Goobay 25503 Fuse Holder 5x20mm
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005929
€1.25
Ex Tax: €1.03
Your shopping cart is empty!

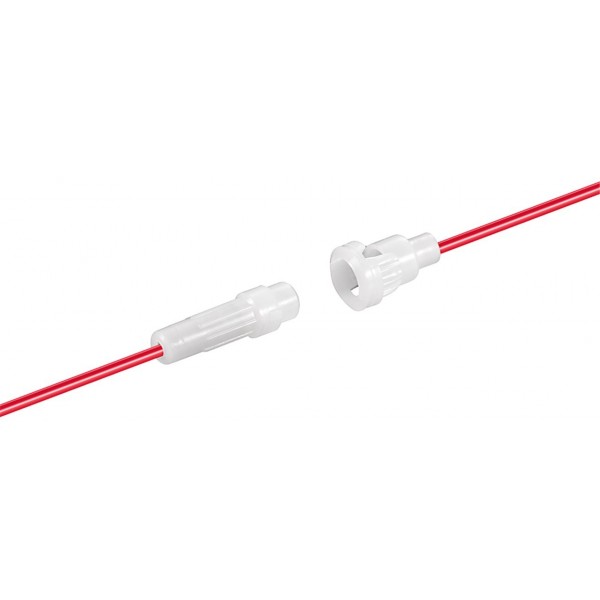

A convenient fuse holder for standard 5x20mm fuses.
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 005929_25503-Product-Data-Sheet.pdf
| General | |
| Brand | Goobay |
| Manufacturer model/SKU | 25503 |
| Features | Fuse holder |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 8 |
| Dimension X [mm] | 15 |
| Dimension Y [mm] | 15 |
| Dimension Z [mm] | 42 |
| Form factor | Wire/cable |
| General electrical properties | |
| Maximum voltage [V AC] | 250 |
| Maximum current [A] | 4 |
| Connectors | |
| Connector type(s) | Loose wire |
| Suitable fuse type | 5x20mm |
| Wire/cable | |
| Conductor thickness [mm²] | 0.5 |
| Core structure | Stranded |
| Insulation material | PVC |
| Outside diameter [mm] | 2.5 |
| Wire/cable length [m] | 0.25 (per side, total ~0.5m) |
| Package contents | |
| Package contents | 1x Fuse holder (two parts) |
