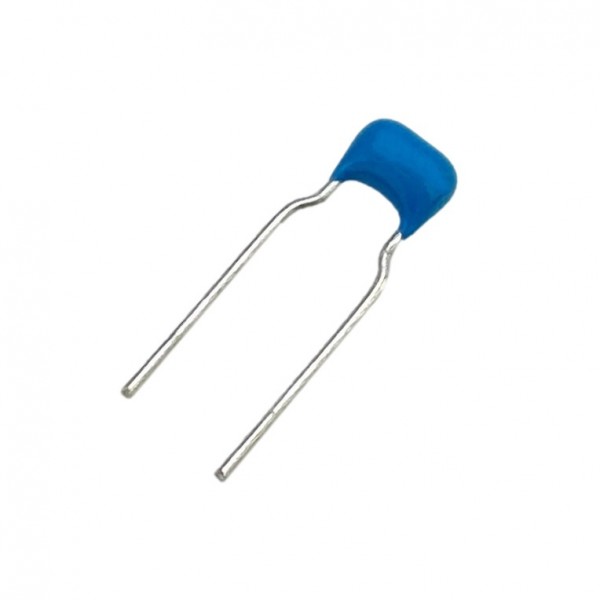

Ceramic Capacitor - 10uF 25V

Ceramic Capacitor - 10uF 25V
Ceramic Capacitor - 10uF 25V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006545
€0.30
Ex Tax: €0.25

A standard ceramic capacitor.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Ceramic Capacitor - 10uF 25V

This product has 0 review(s) in total.

Specifications

General
Brand Dersonic
Manufacturer model/SKU CD1E106MC9BER2F100
Minimum operating temperature [°C] -55
Maximum operating temperature [°C] 85
General physical appearance
Main color Blue
Weight [g] 1
Dimension X [mm] 5.5
(max)
Dimension Y [mm] 5.5
(max)
Dimension Z [mm] 3.8
(max)
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
General electrical properties
Maximum voltage [V DC] 25
Capacitor
Capacitor type Ceramic
Polarised No
Capacity [μF] 10
Capacity tolerance [+%] 20
Capacity tolerance [-%] 20
Temperature class X5R
Connectors
Connector type(s) Solder pin(s) (THT)
Pin distance [mm] 5.08
Package contents
Package contents 1x Capacitor
