RAKwireless RAK2305 WisBlock Wi-Fi BLE Interface Module - ESP32

Availability: Directly available from warehouse in Eindhoven
SKU: 006611

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

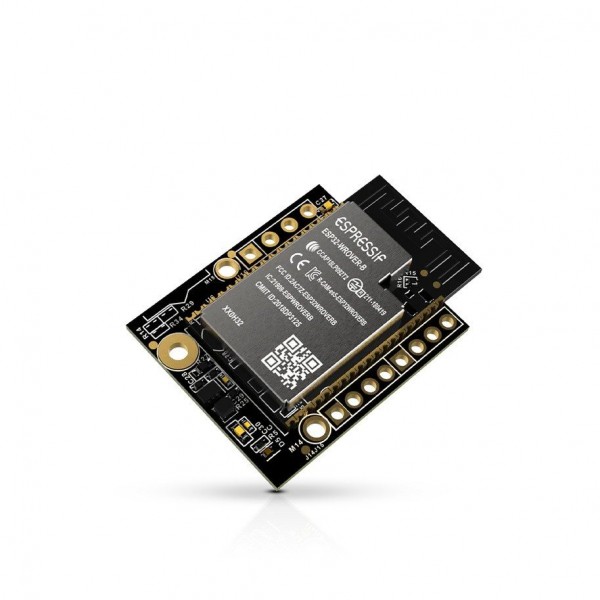

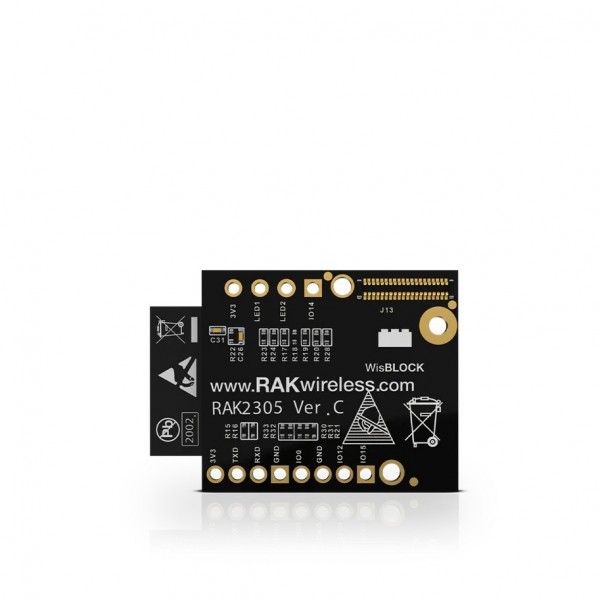

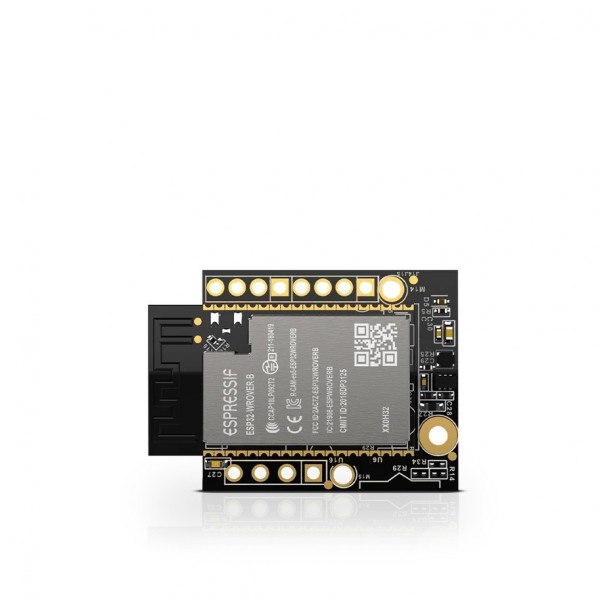

A Wi-Fi communication module from RAKwireless for the modular WisBlock platform, based on the ESP32-WROVER. The module is pre-programmed with the Espressif AT command interface, but can also be reprogrammed.

See the following page for more information: Wiki

Please login or register to review

Reviews Over RAKwireless RAK2305 WisBlock Wi-Fi BLE Interface Module - ESP32

Average Rating:

This product has 0 review(s) in total.

Tags: RAKwireless RAK2305 WisBlock Wi-Fi BLE Interface Module - ESP32 , RAK-110000 , Modules

Specifications

General
Brand	RAKwireless
Manufacturer model/SKU	RAK2305/110000
Features	Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	36
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.5
Form factor	Module (general) WisBlock IO Module
General electrical properties
Minimum supply voltage [V DC]	2.6
Maximum supply voltage [V DC]	4.2
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	UART
Default baudrate	115200
USB to serial converter	None
Protocol	AT-commands
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32 ESP32-WROVER
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) FBB04004 (WisBlock) 40p male
IO-connector(s)	Through hole solder pin(s) (2.54mm) FBB04004 (WisBlock) 40p male
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x RAK2305 WisBlock Wi-Fi Interface Module 3x Male pin header 4p 1x Jumper 2p 1x DuPont female cable 4p
