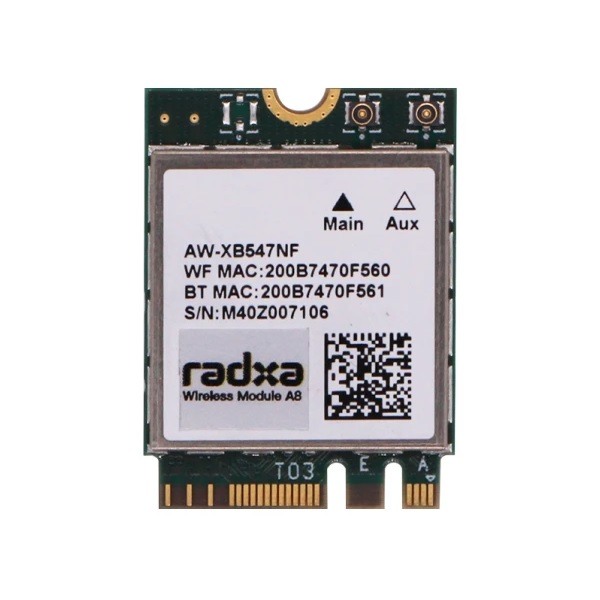

Radxa Wireless Module A8 - Wi-Fi 6 and Bluetooth 5.2

Based on 0 review(s) - Write a review

€12.50

Ex Tax: €10.33

Qty

Add to Cart

Add to wishlist

Only 6 pieces in stock

This module is ideal for adding Wi-Fi and Bluetooth functionality to your Radxa board.

See the following page for more information: Wiki

See the following page for more information: Manufacturer page

Please login or register to review

This product has 0 review(s) in total.

Tags: Radxa Wireless Module A8 - Wi-Fi 6 and Bluetooth 5.2 , RA007-A8 , Modules

General
Brand	Radxa
Manufacturer model/SKU	RA007-A8
Model revision	V2.0
Norm conformity	RoHS CE FCC
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	70
General physical appearance
Main color	Green
Weight [g]	3
Dimension X [mm]	30
Dimension Y [mm]	22
Dimension Z [mm]	2.3
Mounting options	Mounting hole(s)
Form factor	M.2 2230
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	USB PCIe
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	RTL8852BE
Wi-Fi frequency [GHz]	2.4 5
Bluetooth chip/SoC	RTL8852BE
Bluetooth version	5.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	M.2 E-key male
IO-connector(s)	M.2 E-key male
Wi-Fi/Bluetooth antenna connector	IPEX MHF 4 male
Package contents
Package contents	1x Wireless module 2x Antenna 1x Mounting bolt
