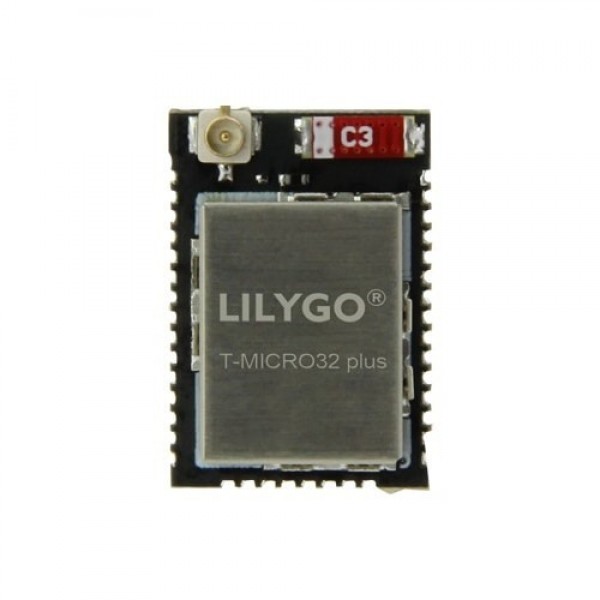

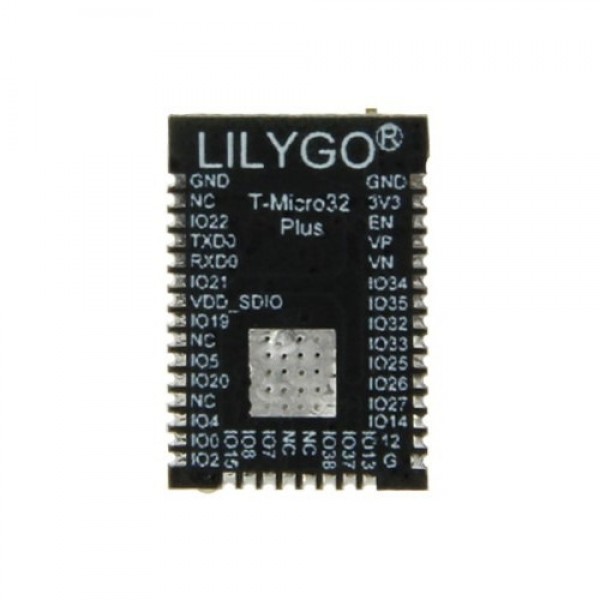

LilyGO TTGO T-Micro32 Plus Wi-Fi and Bluetooth Module - ESP32-PICO-V3-02

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

The T-Micro32 Plus from LilyGO is comparable to the Micro32 V2.0 but has more flash memory and also has PSRAM.

See the following page for more information about the comparable Micro32 V2.0: TTGO Micro32 V2.0

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO TTGO T-Micro32 Plus Wi-Fi and Bluetooth Module - ESP32-PICO-V3-02 , LILYGO-H478 , Modules

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H478
Features	Microcontroller
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	19
Dimension Y [mm]	13
Mounting options	SMT
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-PICO
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	2
Flash memory [MB]	8
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO
Number of IO-pins	26
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	16
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-PICO
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-PICO
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Connectors
Power supply connector(s)	Solder pin(s) (SMT)
IO-connector(s)	Solder pin(s) (SMT)
Pin distance [mm]	1.00
Wi-Fi/Bluetooth antenna connector	Built-in antenna IPEX MHF 1/uFL male (requires modification)
Package contents
Package contents	1x TTGO T-Micro32 Plus
