Name: Heltec HT-CT62-HF - ESP32-C3 Wi-Fi and Bluetooth - SX1262 LoRa 868MHz - HT-CT62-HF
SKU: 005358
Price: 9 EUR
Availability: InStock

Heltec HT-CT62-HF - ESP32-C3 Wi-Fi and Bluetooth - SX1262 LoRa 868MHz

Availability: Directly available from warehouse in Eindhoven
SKU: 005358

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

10 or more €8.75

20 or more €8.50

50 or more €8.25

100 or more €8.00

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

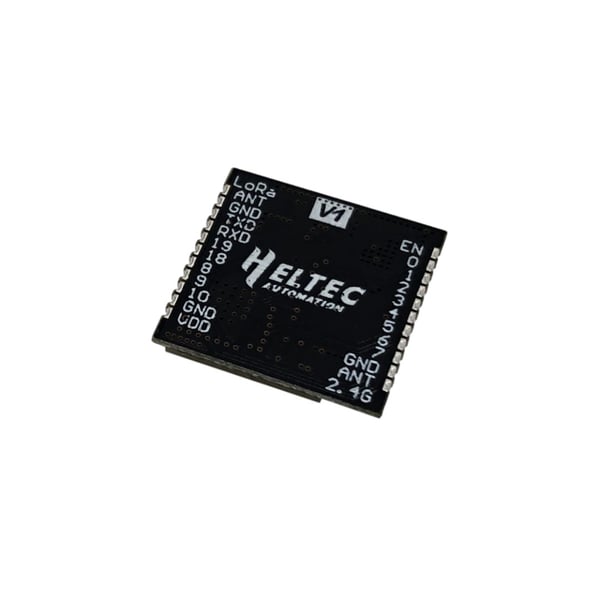

This module consists of an ESP32-C3 and SX1262. This small module therefore has Wi-Fi, Bluetooth and LoRa (868MHz).

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Heltec HT-CT62-HF - ESP32-C3 Wi-Fi and Bluetooth - SX1262 LoRa 868MHz

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005358_HT-CT62(Rev1.1).pdf

Tags: Heltec HT-CT62-HF - ESP32-C3 Wi-Fi and Bluetooth - SX1262 LoRa 868MHz , HT-CT62-HF , Modules

Specifications

General
Brand	Heltec
Manufacturer model/SKU	HT-CT62-HF
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Microcontroller
General physical appearance
Main color	Gray/silver
Weight [g]	2
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	3.1
Mounting options	SMT
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	2.7
Maximum supply voltage [V DC]	3.5
Minimum IO-pin input voltage [V]	2.7
Maximum IO-pin input voltage [V]	3.5
IO-pin output voltage [V]	Equal to supply voltage
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-C3
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	400
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	15
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth LoRa
Wi-Fi chip/SoC	ESP32-C3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
LoRa chip/SoC	SX1262
LoRa frequency [MHz]	868
Connectors
Power supply connector(s)	Solder pin(s) (SMT)
IO-connector(s)	Solder pin(s) (SMT)
Wi-Fi/Bluetooth antenna connector	IPEX MHF 1/uFL male Solder pin (SMT)
LoRa antenna connector	IPEX MHF 1/uFL male Solder pin (SMT)
Package contents
Package contents	1x HT-CT62-HF
