ESP32-WROVER-IE-N8R8


                      - Availability: Directly available from warehouse in Eindhoven
- SKU: 006320
€5.25
                            Ex Tax: €4.34

                        Your shopping cart is empty!

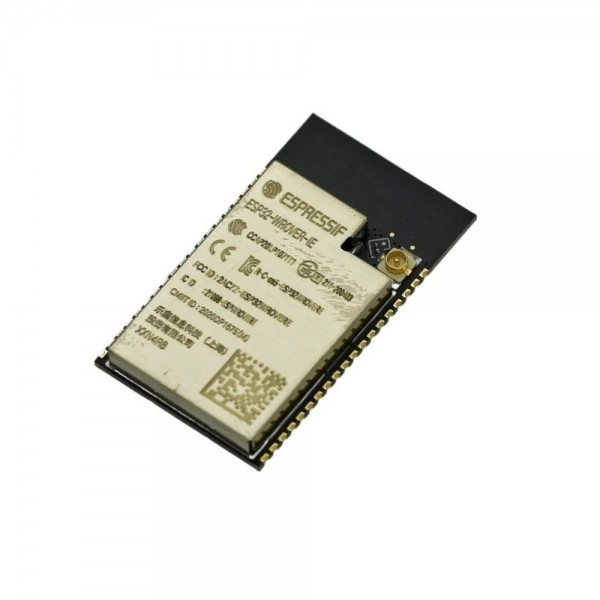

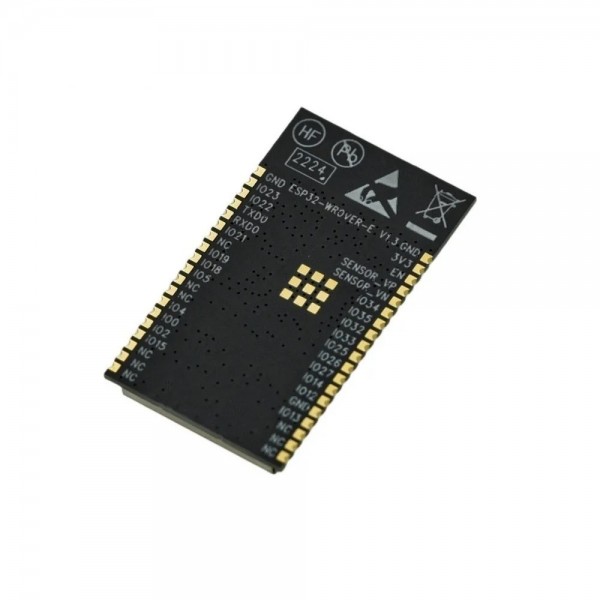

                        This ESP32-WROVER Wi-Fi module is an ESP32 based module with Wi-Fi and Bluetooth.
Check the tab "Downloads" for more information and/or downloads.
| General | |
| Brand | Espressif |
| Manufacturer model/SKU | ESP32-WROVER-IE-N8R8 |
| Norm conformity | RoHS CE FCC |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| Features | Microcontroller (MCU) |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 3 |
| Dimension X [mm] | 31 |
| Dimension Y [mm] | 18 |
| Dimension Z [mm] | 3.3 |
| Mounting options | SMT |
| Form factor | Individual component |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3 |
| Maximum supply voltage [V DC] | 3.6 |
| Minimum IO-pin input voltage [V] | 3 |
| Maximum IO-pin input voltage [V] | 3.6 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Maximum IO-pin source current [mA] | 20 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 520 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | I2C I2S SPI UART PWM ADC DAC GPIO USB CDC |
| Number of IO-pins | 24 |
| Maximum available hardware PWM channels | 16 |
| Maximum available analog input pins (ADC) | 16 |
| Maximum available analog output pins (DAC) | 2 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | None |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 |
| Bluetooth version | 4.2 |
| Supported Bluetooth standard(s) | LE Classic |
| Connectors | |
| Power supply connector(s) | Solder pin(s) (SMT) |
| IO-connector(s) | Solder pin(s) (SMT) |
| Wi-Fi/Bluetooth antenna connector | IPEX MHF 1/uFL male Built-in antenna (requires modification) |
| Package contents | |
| Package contents | 1x ESP32-WROVER module |
