DFRobot ESP8266 Wi-Fi Bee Module

Availability: Directly available from warehouse in Eindhoven
SKU: 005042

Based on 0 review(s) - Write a review

€7.50

Ex Tax: €6.20

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

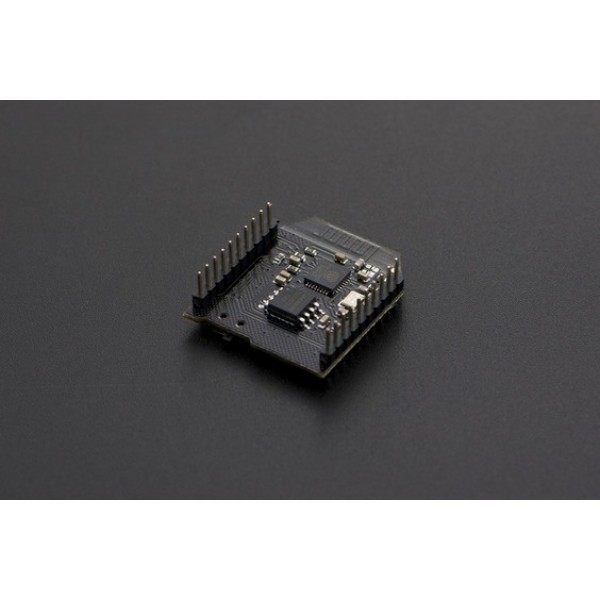

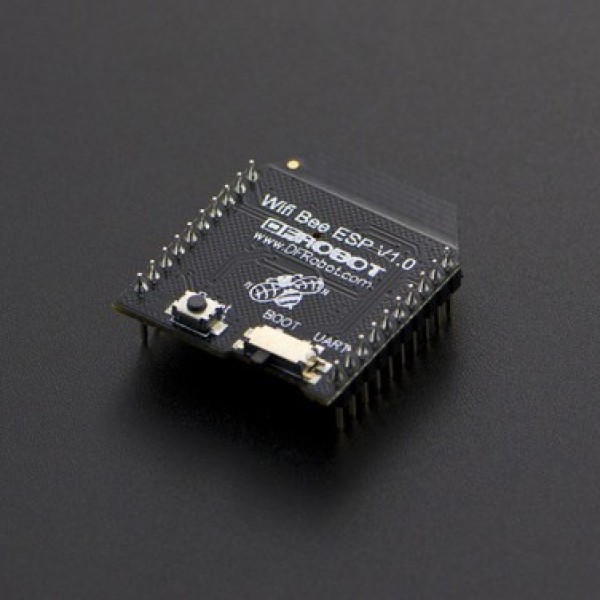

A UART to Wi-Fi module from DFRobot, with the form factor of an XBEE module. If you have a development/adapter board with an XBEE module connector, you can easily expand it with Wi-Fi. The module communicates via UART with AT commands.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot ESP8266 Wi-Fi Bee Module

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot ESP8266 Wi-Fi Bee Module , DFROBOT-TEL0092 , Modules

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	TEL0092
Model revision	V1.0
Features	Microcontroller (MCU)
General physical appearance
Main color	Black
Weight [g]	2

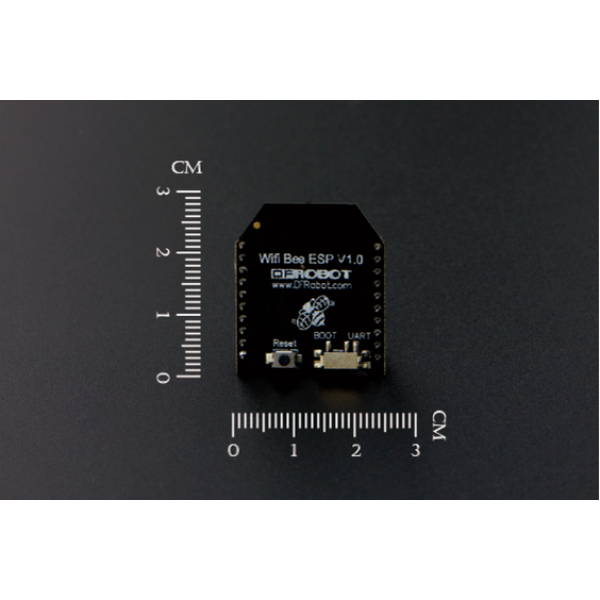

Dimension X [mm]	28
Dimension Y [mm]	25
Mounting options	Pin headers
Form factor	Module (general) XBEE layout
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	12
Maximum IO-pin sink current [mA]	12
MCU
Manufacturer	Espressif
Chip series	ESP8266
Maximum clock frequency [MHz]	80
Number of cores	1
Internal memory
SRAM [KB]	160
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	UART GPIO
Number of IO-pins	2
Maximum available hardware PWM channels	0
Maximum available analog input pins (ADC)	0
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	1
Default baudrate	115200
Maximum available hardware I2C interfaces	0
Maximum available hardware SPI interfaces	0
USB to serial converter	None (pre-programmed)
Wireless communication
Interface(s)	Wi-Fi
Wi-Fi chip/SoC	ESP8266
Wi-Fi frequency [GHz]	2.4
Connectors
Power supply connector(s)	Pin header male (2.00mm)
IO-connector(s)	Pin header male (2.00mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Wi-Fi Bee module
