Teltonika Calyx 4G HAT - for Raspberry Pi

Teltonika Calyx 4G HAT - for Raspberry Pi
Teltonika Calyx 4G HAT - for Raspberry Pi
Teltonika Calyx 4G HAT - for Raspberry Pi
2-4 Weeks
Teltonika Calyx 4G HAT - for Raspberry Pi
Teltonika Calyx 4G HAT - for Raspberry Pi
Teltonika Calyx 4G HAT - for Raspberry Pi
Teltonika Calyx 4G HAT - for Raspberry Pi
  • Availability: 2-4 Weeks
  • SKU: 007580
Based on 0 review(s) - Write a review
€39.75
Ex Tax: €32.85
Add to Cart
Add to wishlist

This European made Calyx 4G is a HAT by Teltonika for Raspberry Pi to use various generations of telecommunications. This module supports calling, SMS, and data transfer.

Note: Antennas are not included, we recommend the following antenna (2 pieces required): JCG410NR 4G-5G Antenna

See the following page for more information: Manufacturer page

See the following page for a tutorial: Tutorial

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Teltonika Calyx 4G HAT - for Raspberry Pi

This product has 0 review(s) in total.

Tags: Telecommunication , Modules , Teltonika Calyx 4G HAT - for Raspberry Pi , 007580 , Teltonika , EBD021000000 , USB CDC , Telecom

Specifications

General
Brand Teltonika
Manufacturer model/SKU EBD021000000
Norm conformity CE
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 75
General physical appearance
Main color Green
Weight [g] 40
Dimension X [mm] 88
Dimension Y [mm] 56
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.7
Form factor Module (general)
Raspberry Pi SBC layout/HAT
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) USB CDC
Protocol AT-commands
Supported SIM card size Nano-SIM
Wireless communication
Interface(s) Telecom
Telecom chip/SoC ALA440-1E1
Supported telecom networks 2G
3G
4G (LTE CAT 4)
Supported 2G bands 900MHz
1800MHz
Supported 3G bands B1, B8
Supported 4G bands B1, B3, B5, B7, B8, B20, B28, B38, B40, B41
Connectors
Power supply connector(s) USB-C female
Pin header female (2.54mm)
IO-connector(s) USB-C female
Pin header female (2.54mm)
Telecom antenna connector SMA female

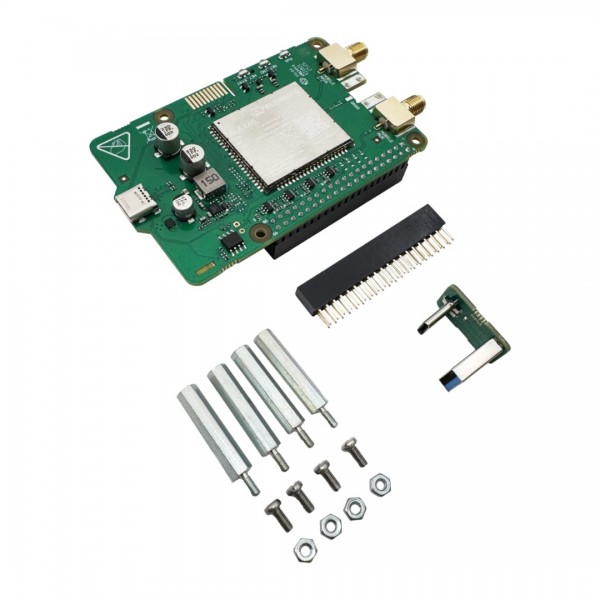

Package contents
Package contents 4x Nut
4x Spacer
4x Mounting bolt
1x Calyx 4G
1x USB adapter piece
1x GPIO extender header (2x20p)
