SIM7600E-L1C LTE GNSS Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005345
€33.50
Ex Tax: €27.69
Your shopping cart is empty!

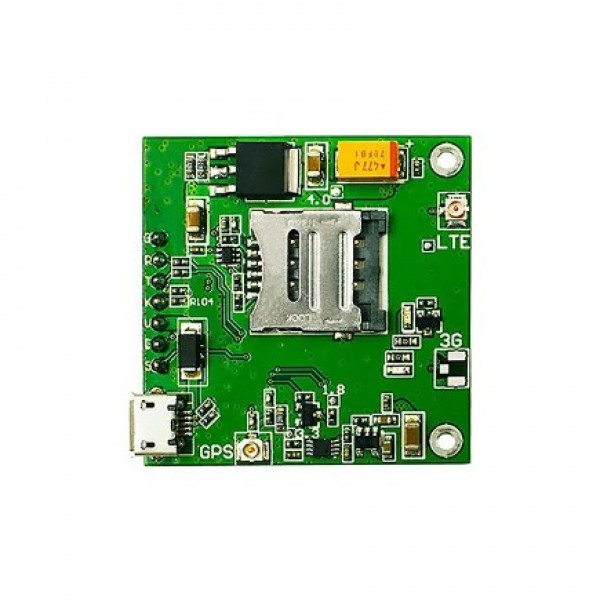

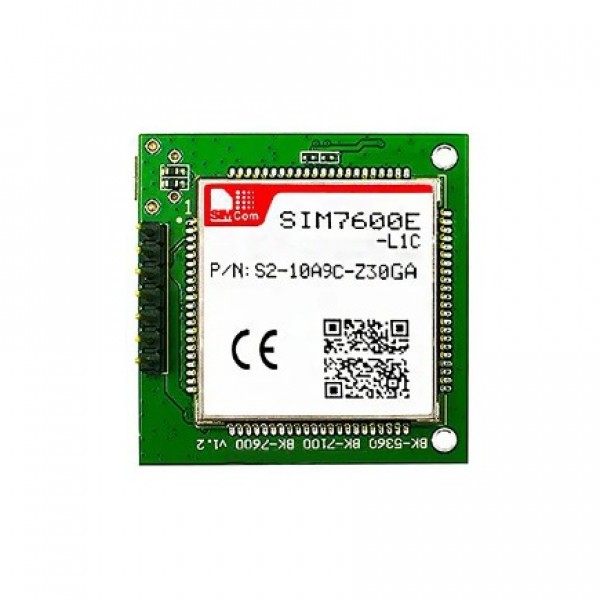

A telecom module based on the SIM7600E-L1C. The module is controlled via AT commands.
Note: The module does not include a telecom and/or GNSS antenna. These can be ordered separately: Antennas
Check the tab "Downloads" for more information and/or downloads.
Schematic: 005345_BK-7600 Schematics V1.pdf
| General | |
| Brand | No brand |
| General physical appearance | |
| Main color | Green |
| Weight [g] | 13 |
| Dimension X [mm] | 40 |
| Dimension Y [mm] | 40 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 2.1 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART USB CDC |
| Default baudrate | 115200 |
| Protocol | AT-commands |
| Supported SIM card size | Micro-SIM |
| Wireless communication | |
| Interface(s) | GNSS Telecom |
| GNSS chip/SoC | SIM7600E-L1C |
| Supported GNSS systems | GPS Beidou GLONASS |
| Maximum GNSS position accuracy [m] | 2.5 |
| Maximum GNSS update rate [Hz] | 10 |
| Telecom chip/SoC | SIM7600E-L1C |
| Supported telecom networks | 2G 4G (LTE CAT 1) 3G |
| Supported 2G bands | 900MHz 1800MHz |
| Supported 3G bands | B1, B8 |
| Supported 4G bands | B1, B3, B5, B7, B8, B20 |
| Connectors | |
| Power supply connector(s) | Micro USB female Mini PCIe male |
| IO-connector(s) | Pin header male (2.54mm) Micro USB female |
| Telecom antenna connector | IPEX MHF 1/uFL male |
| GNSS antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x SIM7600E-L1C Module |
