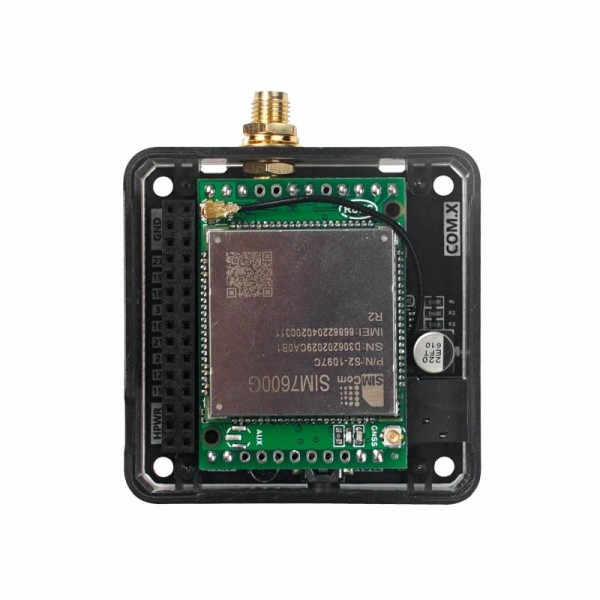

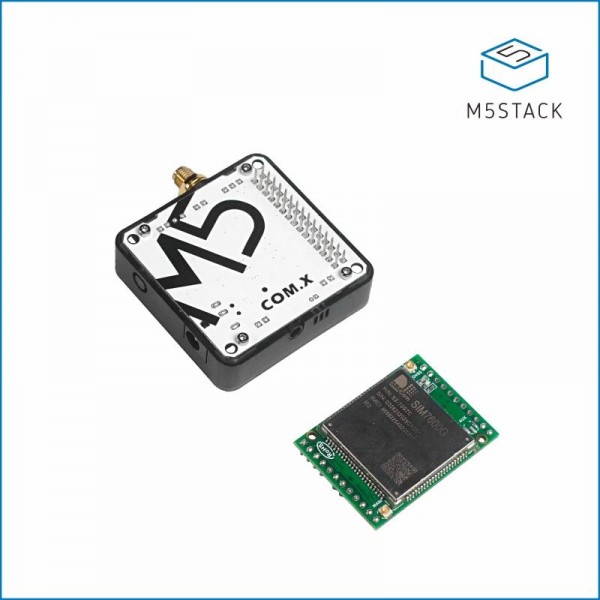

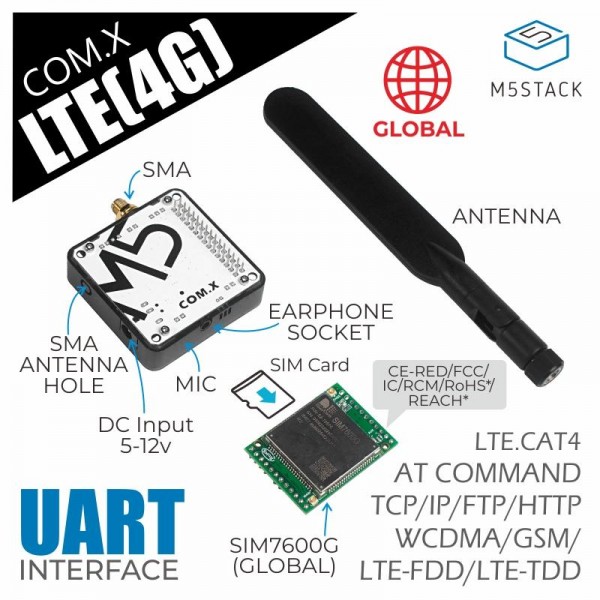

M5Stack COM LTE 4G Module - SIM7600G - for M5Core

This is a stackable extension module for the M5Core for the use of LTE 4G communication. Call or send SMS texts for example using this module. This module is very suitable for situations where high speed communication with other devices is required.

Specifications:

• Stackable design for easy mounting on an M5Core
• SIM card type: MicroSIM
• Input voltage: 5-12V DC (via DC-Jack) or 5V DC (via M5Stack bus)
• Serial communication: UART 115200bps
• Frequency bands:
  • LTE-TDD: B34 / B38-B41
  • LTE-FDD: B1-B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66
  • WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
  • GSM/GPRS/EDGE: 850 / 900 / 1800 / 1900MHz
• Data transfer rate:
  • LTE Cat4:
    • UL: 50Mbps
    • DL: 150Mbps
  • HSPA+:
    • UL: 5.76Mbps
    • DL: 42Mbps
  • WCDMA:
    • UL/DL: 384Kbps
  • EDGE/GPRS:
    • UL/DL: 236.8Kbps
• External Antenna: SMA antenna
• Supports calling, SMS text and data transmission
• Supports AT commands
• Built-in microphone
• Built-in LED indicators (power/network status)
• Dimensions: 54.2x54.2x13.2mm

Package contents:

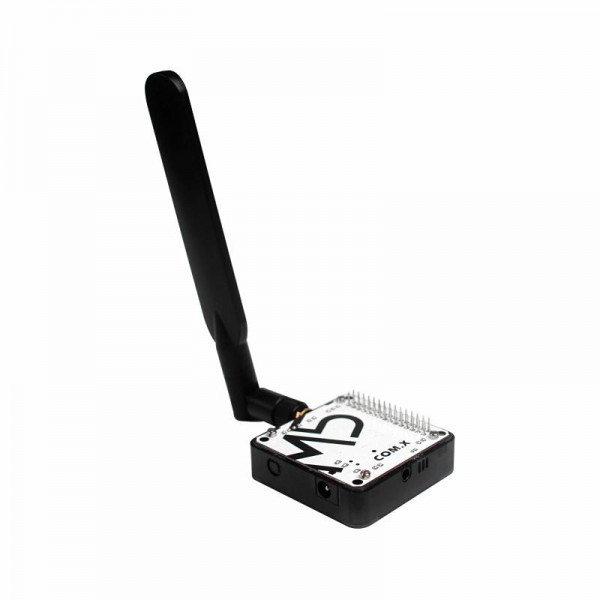

• 1x M5Stack COM.LTE (4G) Module
• 1x SMA Antenna

See the following link for more information: M5Stack-COM-LTE-4G-MODULE.
