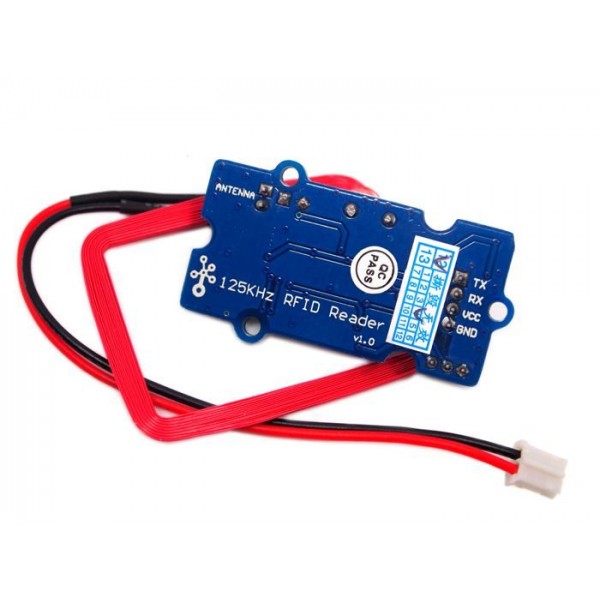

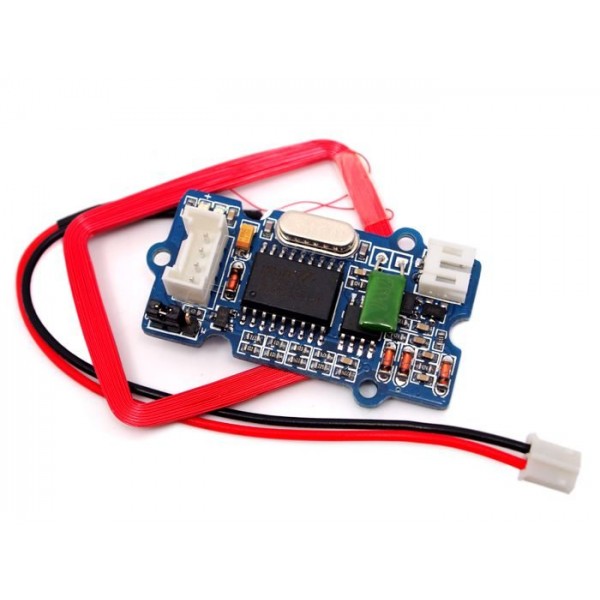

Seeed Studio Grove 125kHz RFID Reader - for EM4100

An RFID reader module from Seeed Studio suitable for reading EM4100 compatible RFID cards/tags.

Specifications:

• Supply voltage: 4.75 - 5.25V DC
• Signal voltage: 4.75 - 5.25V (same as supply voltage)
• Communication:
  • Interface: UART
  • Baud rate: 9600
• RFID:
  • Operating frequency: 125kHz
  • Maximum reading distance: 70mm
  • Supported protocols: EM4100
• Connector: Grove
• Dimensions: 44 x 24 x 9.6mm (without antenna)

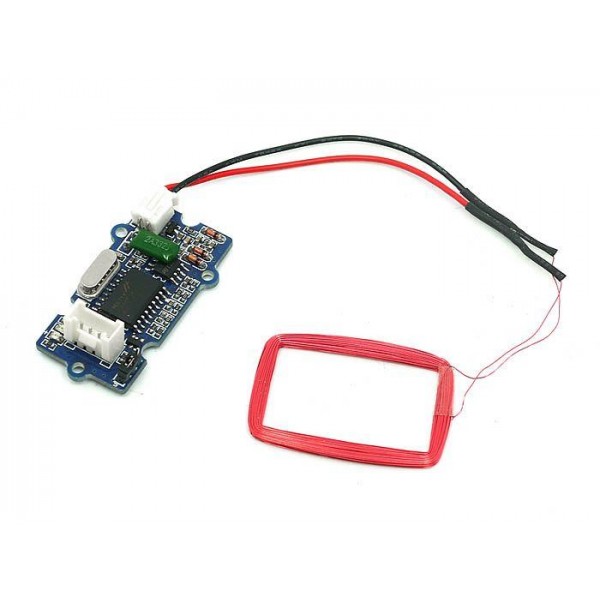

Package contents:

• 1x Seeed Studio Grove 125kHz RFID reader
• 1x RFID antenna
• 1x Grove cable

See the following page for more information and examples: Seeed Studio Grove 125kHz RFID Reader
