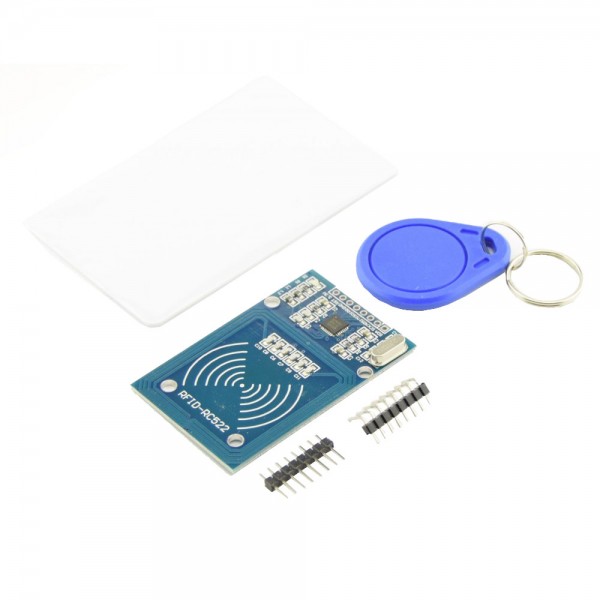

RFID KIT MFRC522 S50 Mifare with Card and Key Tag

With this RFID kit you can read Mifare tags and cards for your project.

Specifications:

• Supply voltage: 3.3V DC
• Continuous Current: 13-26mA / DC 3.3V
• Idle Current: 10-13mA / DC 3.3V
• Sleep current draw: <80uA
• Peak current: <30mA
• Working frequency: 13.56 MHz
• Supported cards*: Mifare1 S50, mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire

Package contents:

• 1x RC-522 module
• 1x S50 Key tag
• 1x S50 Card
• 1x Pin headers standard
• 1x Pin headers 90 degrees

See the following page for information on how to use the RFID kit with Arduino: Mifare MFRC522 RFID Reader/Writer

*Note: The readability of the card strongly depends on the type of Mifare card and the size of the coil in the card/tag. The S50 (1K) cards/tags are generally well supported, but a different type of card may not be supported (even though the datasheet does explain this support).

Check the tab "Downloads" for more information and/or downloads.
