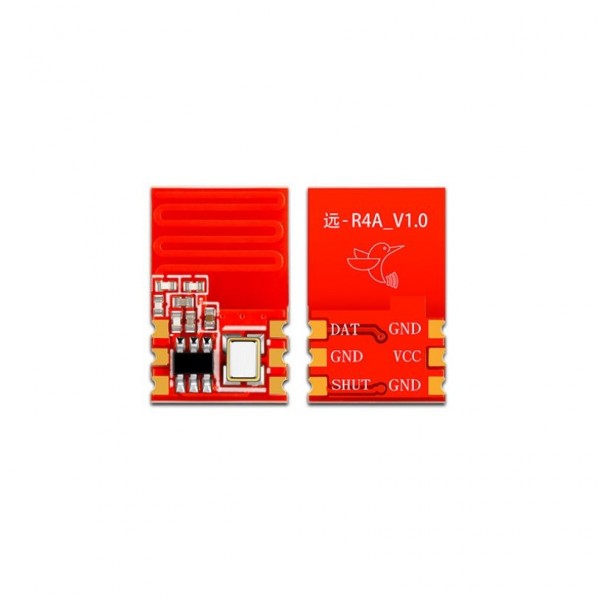

R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna

R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna
R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna
R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna
R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna
R4A 433MHz RF Receiver - 2-5.5V - SMD - Built-in Antenna
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003524
Based on 0 review(s) - Write a review
€2.50
Ex Tax: €2.07
10 or more €2.25
20 or more €2.00
50 or more €1.75
100 or more €1.50
200 or more €1.40
Add to Cart
Add to wishlist

An RF receiver with an antenna on the PCB. To get the module out of sleep mode, the "SHUT" pin must be connected to ground.

Specifications:

  • Supply voltage: 2.0 - 5.5V DC
  • Signal voltage: 2.0 - 5.5V
  • Current:
    • Nominal: ~2.95mA
    • Sleep mode: ~0.1µA
  • RF receiver:
    • Frequency: 433.92MHz
    • Maximum transfer rate: 9.6kb/s
    • Modulation: ASK/OOK
    • Built-in antenna: Yes

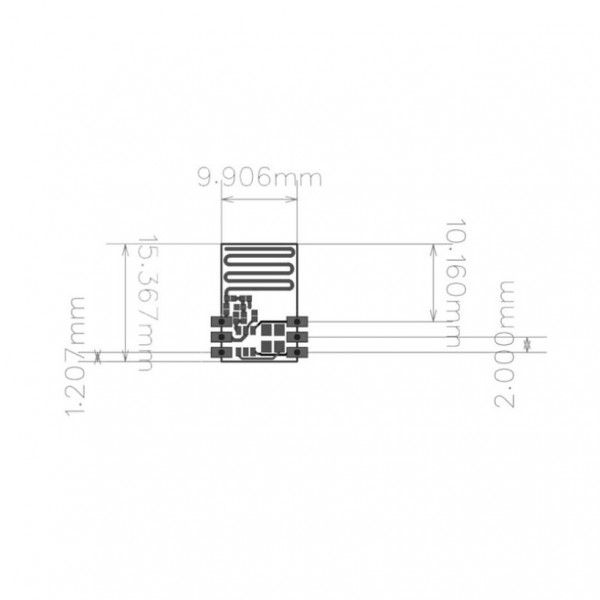

  • Dimensions: See images

Package contents:

  • 1x R4A 433MHz RF Receiver
