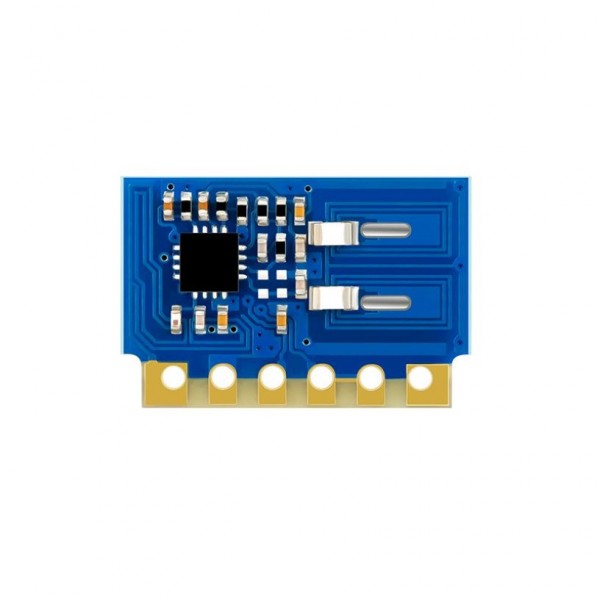

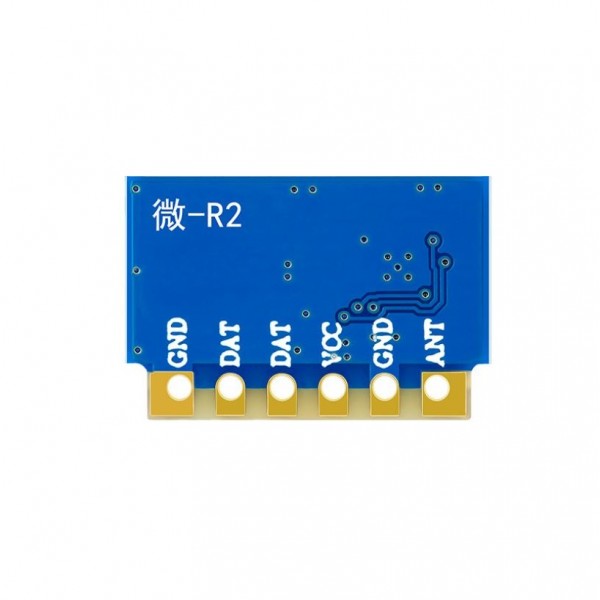

R2 433MHz RF Receiver - 2.2-3.6V - Low Power

R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
R2 433MHz RF Receiver - 2.2-3.6V - Low Power
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003529
Based on 0 review(s) - Write a review
€2.50
Ex Tax: €2.07
Add to Cart
Add to wishlist

An RF receiver with a very low power consumption.

Specifications:

  • Supply voltage: 2.2 - 3.6V DC
  • Signal voltage: 2.2 - 3.6V
  • Nominal current: ~0.1mA
  • RF receiver:
    • Frequency: 433.92MHz
    • Sensitivity: -102dBm
    • Maximum transfer rate: 4.8kb/s
    • Built-in antenna: No*

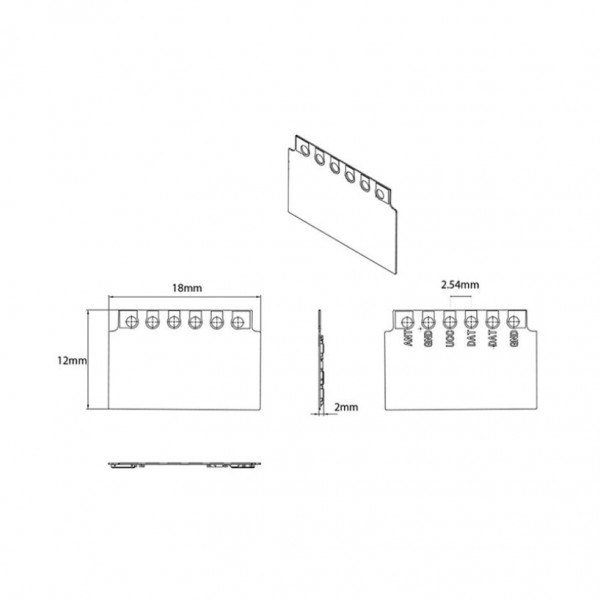

  • Dimensions: See images

Package contents:

  • 1x R2 433MHz RF Receiver

*Note: An external antenna is required for this module: 433MHz Antenna.
