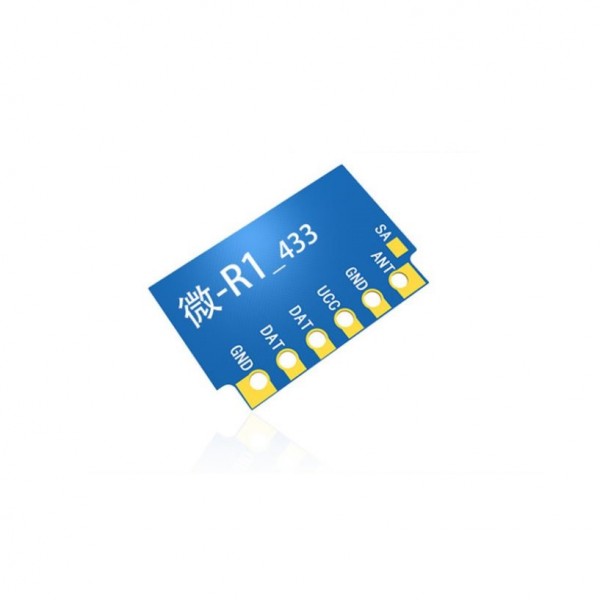

R1 433MHz RF Receiver - 2.7-5.3V - Low Power

A small RF receiver with very low power consumption and yet a relatively high input voltage range. This allows it to be powered directly from a Li-Po/Li-ion battery, for example.

Specifications:

• Supply voltage: 2.7 - 5.3V DC
• Signal voltage: 2.7 - 5.3V
• Nominal current: ~0.28mA
• RF receiver:
  • Frequency: 433.92MHz
  • Sensitivity: -102dBm
  • Maximum transfer rate: 9.6kb/s
  • Built-in antenna: No*

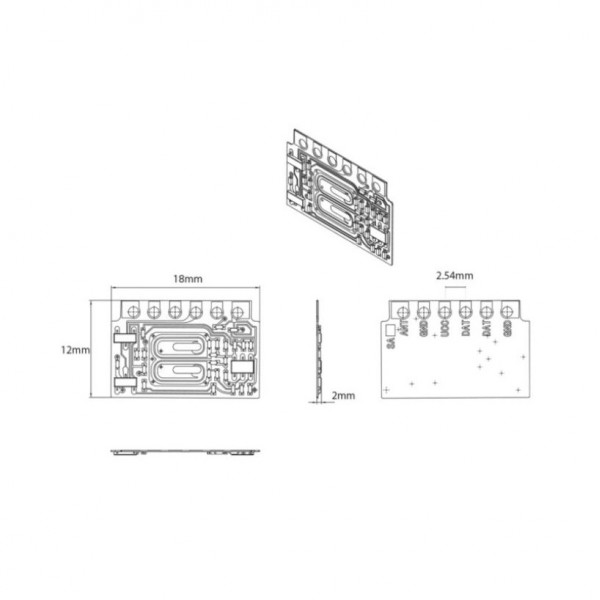

• Dimensions: See images

Package contents:

• 1x R1 433MHz RF Receiver

*Note: An external antenna is required for this module: 433MHz Antenna.
