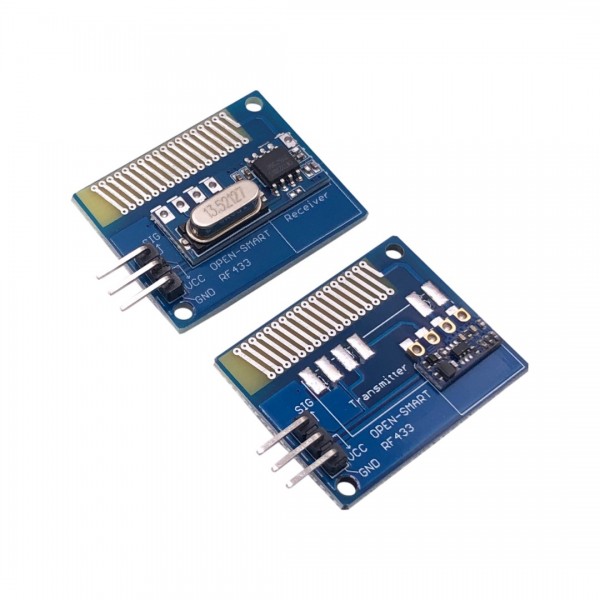

Open-Smart RF Transmitter and Receiver Kit - 433MHz

Based on 0 review(s) - Write a review

€5.00

Ex Tax: €4.13

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

An RF transmitter and receiver kit from Open-Smart.

See the following page for a tutorial: Tutorial

Please login or register to review

This product has 0 review(s) in total.

Tags: Open-Smart RF Transmitter and Receiver Kit - 433MHz , OS-RF433KIT , Modules

General
Brand	Open-Smart
General physical appearance
Main color	Blue
Weight [g]	4 (receiver) 3 (transmitter)
Dimension X [mm]	30
Dimension Y [mm]	24
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	2.3
Form factor	Module (general) Set/kit
General electrical properties
Minimum supply voltage [V DC]	4 (transmitter) 2 (receiver)
Maximum supply voltage [V DC]	5.5 (receiver) 12 (transmitter)
Minimum IO-pin input voltage [V]	4 (transmitter) 2 (receiver)
Maximum IO-pin input voltage [V]	5.5 (receiver) 12 (transmitter)
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
Wireless communication
Interface(s)	RF (general)
RF chip/SoC	CMT2220LS (receiver)
RF receiver/transmitter	Receiver Transmitter
RF frequency [MHz]	433
Maximum RF transfer speed [kb/s]	4.8
Sensitivity RF receiver [dBm]	-110
Maximum RF transmit power [mW]	501 (@12V, note: may not be legal everywhere)
RF modulation	OOK
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
LoRa antenna connector	Built-in antenna
RF antenna connector	Built-in antenna
Package contents
Package contents	1x Receiver 1x Transmitter
