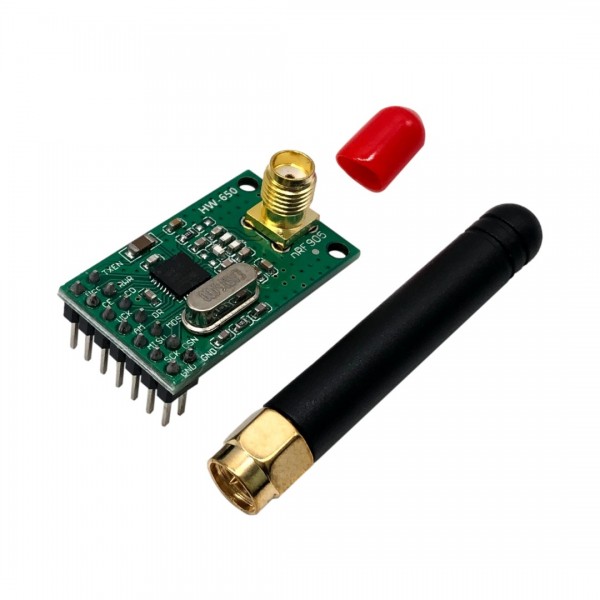

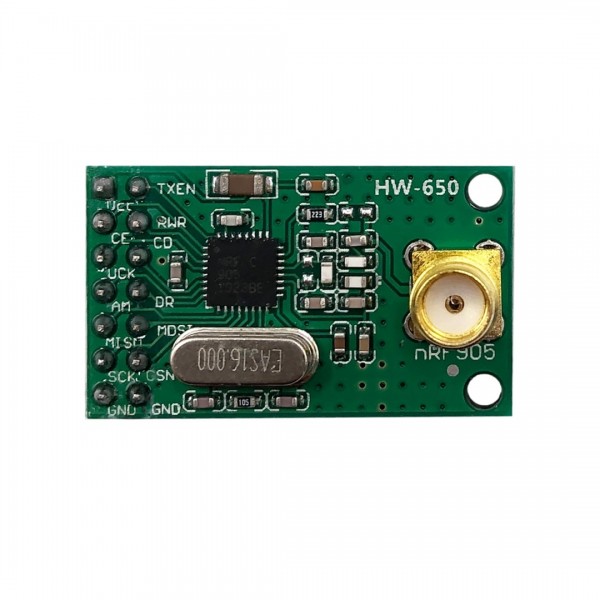

NRF905 RF Transceiver Module - 3.3V - with Antenna

NRF905 RF Transceiver Module - 3.3V - with Antenna
NRF905 RF Transceiver Module - 3.3V - with Antenna
NRF905 RF Transceiver Module - 3.3V - with Antenna
NRF905 RF Transceiver Module - 3.3V - with Antenna
NRF905 RF Transceiver Module - 3.3V - with Antenna
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005388
€4.50
Ex Tax: €3.72

The NRF905 module is a wireless transceiver with an included antenna (433MHz), suitable for applications in remote control, telemetry, industrial data acquisition, and wireless networking, operating on frequencies of 433MHz, 868MHz, and 915MHz.

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over NRF905 RF Transceiver Module - 3.3V - with Antenna

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Green
Weight [g] 5
(excl. antenna)
10
(incl. antenna)
Dimension X [mm] 32
Dimension Y [mm] 19
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.5
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.9
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 1.9
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Wireless communication
Interface(s) RF (general)
RF chip/SoC nRF905
RF receiver/transmitter Receiver
Transmitter
RF frequency [MHz] 433
868
915
Maximum RF transfer speed [kb/s] 50
Sensitivity RF receiver [dBm] -100
Maximum RF transmit power [mW] 10
RF modulation GFSK
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
RF antenna connector SMA female
Package contents
Package contents 1x NRF905 module
1x Antenna - 433MHz - SMA Male
1x Protective cap
