Ai-Thinker NRF24L01+ Wireless Module - With PA and LNA

An easy wireless communication module that uses the 2.4 GHz band.
This variant of the NRF24L01+ module also has a PA (Power amplifier) ​​and LNA (Low noise amplifier) ​​built in for a wider range.

• Maximum speed to 2Mbps, GFSK modulation, Anti-interference capability
• 125 Channel, Multi-point communication and frequency hopping.
• Built-in hardware CRC error detection, Multipoint communication address control.
• Low-power 1.9 ~ 3.6V, only 1uA in Power down mode.

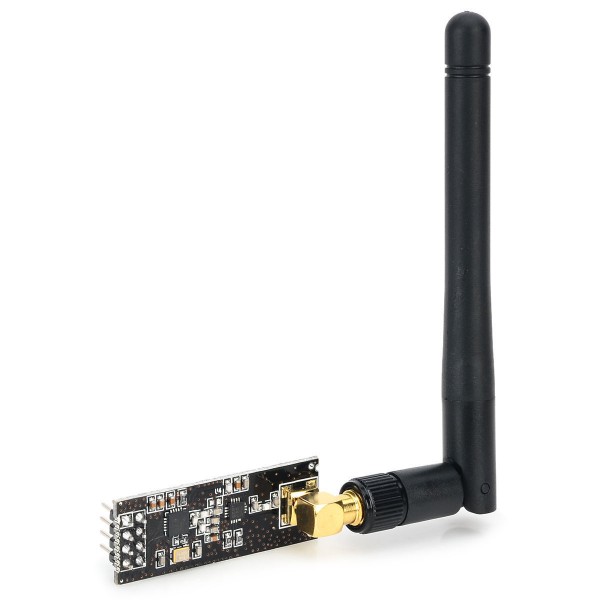

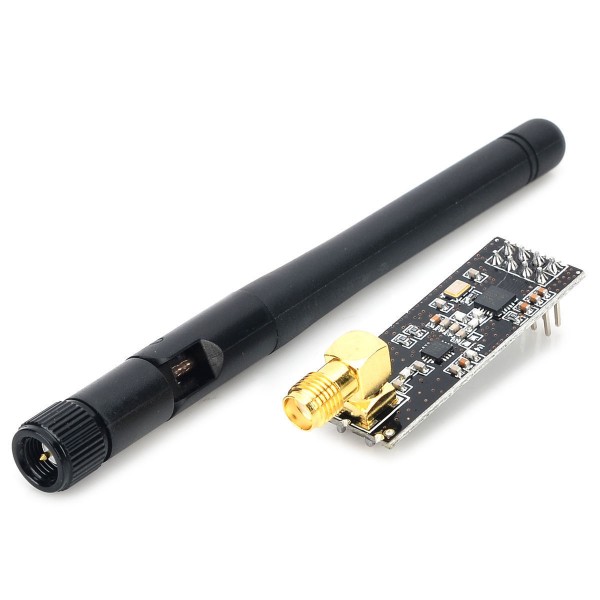

• External 2.4GHz antenna (SMA connector) included
• Available software to set the address.
• Built-in voltage regulator.
• Built-in PA and LNA chip for greater transmission power and better reception
• Standard DIP Pitch Interface for embedded applications.

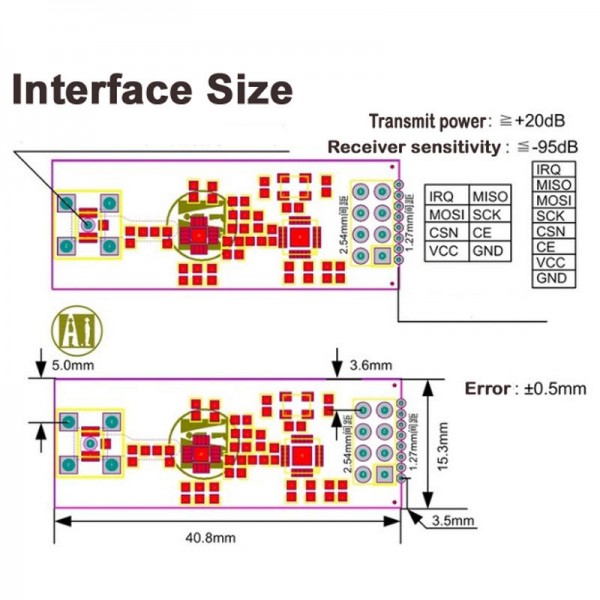

• Dimensions: 41 x 15.3mm (excluding SMA connector)
