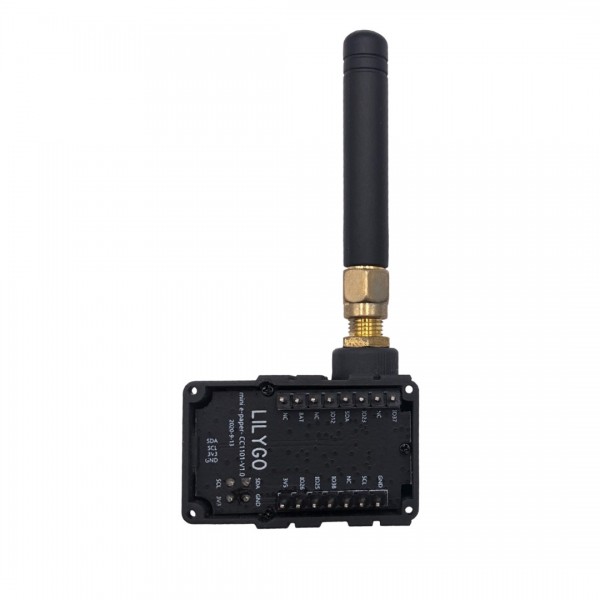

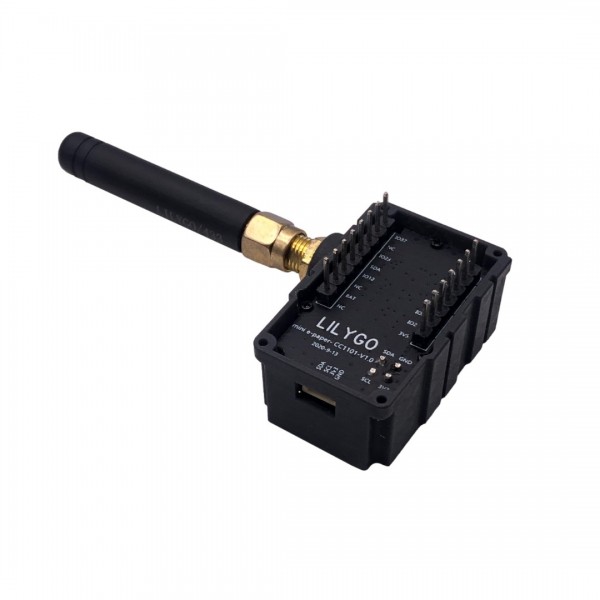

LilyGO CC1101 RF Transceiver Shield for Mini E-Paper - with 433MHz Antenna

Based on 0 review(s) - Write a review

€16.00

Ex Tax: €13.22

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

This expansion module for the LilyGO Mini E-Paper has an integrated CC1101 RF transceiver, allowing additional wireless communication.

Note: The casing appears to have been smoothed with sandpaper, causing some scratches. Please take this into account.

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO CC1101 RF Transceiver Shield for Mini E-Paper - with 433MHz Antenna , LILYGO-H627 , Modules

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H627
Features	Enclosure
General physical appearance
Main color	Black
Weight [g]	16
Dimension X [mm]	38
Dimension Y [mm]	25
Dimension Z [mm]	16
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	1.8
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	1.8
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Wireless communication
Interface(s)	RF (general)
RF chip/SoC	CC1101
RF receiver/transmitter	Receiver Transmitter
RF frequency [MHz]	433
Sensitivity RF receiver [dBm]	-116
Maximum RF transmit power [mW]	15.85
RF modulation	2-FSK GFSK OOK ASK 4-FSK
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	JST-SH (compatible) male Pin header male (2.54mm)
RF antenna connector	SMA female
Enclosure
Material	Plastic (unknown material)
Package contents
Package contents	1x CC1101 Shield 1x Antenna - 433MHz
