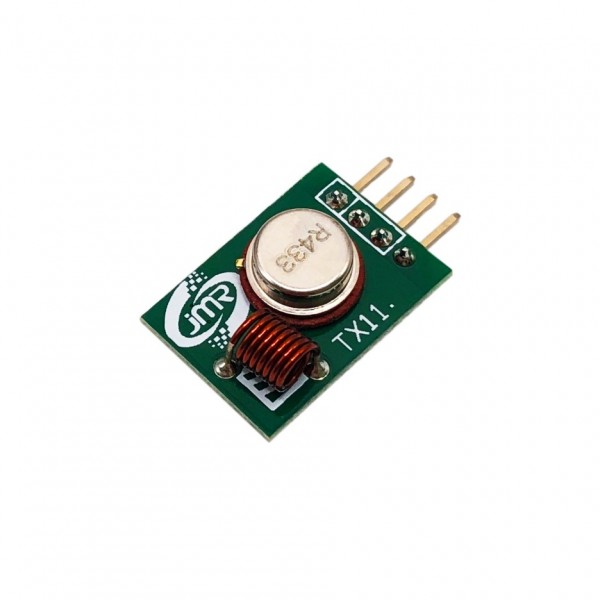

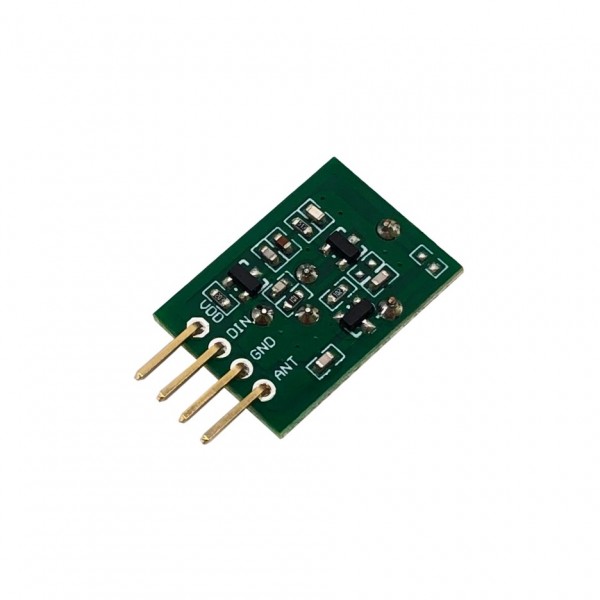

JMR TX11 433MHz RF Transmitter Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005508
€2.25
Ex Tax: €1.86
Your shopping cart is empty!
A small RF transmitter.
Note: An external antenna is required for this module: 433MHz Antenna.
Check the tab "Downloads" for more information and/or downloads.
| General | |
| Brand | JMR |
| Manufacturer model/SKU | TX11-433M |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 70 |
| General physical appearance | |
| Main color | Green |
| Weight [g] | 3 |
| Dimension X [mm] | 21 |
| Dimension Y [mm] | 15 |
| Mounting options | Pin headers |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3 |
| Maximum supply voltage [V DC] | 9 |
| Minimum IO-pin input voltage [V] | 3 |
| Maximum IO-pin input voltage [V] | 9 |
| Communication | |
| Hardware interface(s) | Digital |
| Wireless communication | |
| Interface(s) | RF (general) |
| RF receiver/transmitter | Transmitter |
| RF frequency [MHz] | 433 |
| Maximum RF transfer speed [kb/s] | 3 |
| Maximum RF transmit power [mW] | 30 |
| RF modulation | ASK |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| RF antenna connector | Pinheader male (2.54mm) |
| Package contents | |
| Package contents | 1x RF transmitter module |
