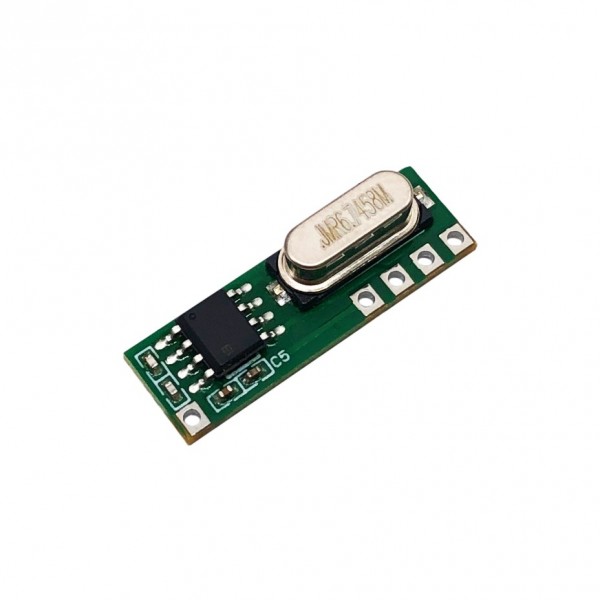

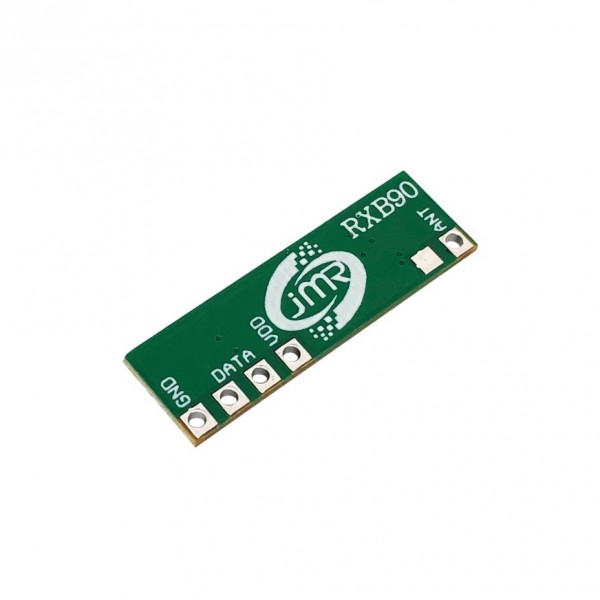

JMR RXB90 433MHz RF Receiver module

JMR RXB90 433MHz RF Receiver module
JMR RXB90 433MHz RF Receiver module
JMR RXB90 433MHz RF Receiver module
JMR RXB90 433MHz RF Receiver module
JMR RXB90 433MHz RF Receiver module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005512
€2.25
Ex Tax: €1.86

A small RF receiver module.

Note: An external antenna is required for this module: 433MHz Antenna.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over JMR RXB90 433MHz RF Receiver module

This product has 0 review(s) in total.

Specifications

General
Brand JMR
Manufacturer model/SKU RXB90-433M
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
General physical appearance
Main color Green
Weight [g] 2
Dimension X [mm] 24
Dimension Y [mm] 7.6
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.8
Maximum supply voltage [V DC] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) Digital
Wireless communication
Interface(s) RF (general)
RF receiver/transmitter Receiver
RF frequency [MHz] 433
Maximum RF transfer speed [kb/s] 2.4
Sensitivity RF receiver [dBm] -115
(50ohm antenna 1kb/s)
RF modulation ASK
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
RF antenna connector Through hole solder pin
Package contents
Package contents 1x RF Receiver module
