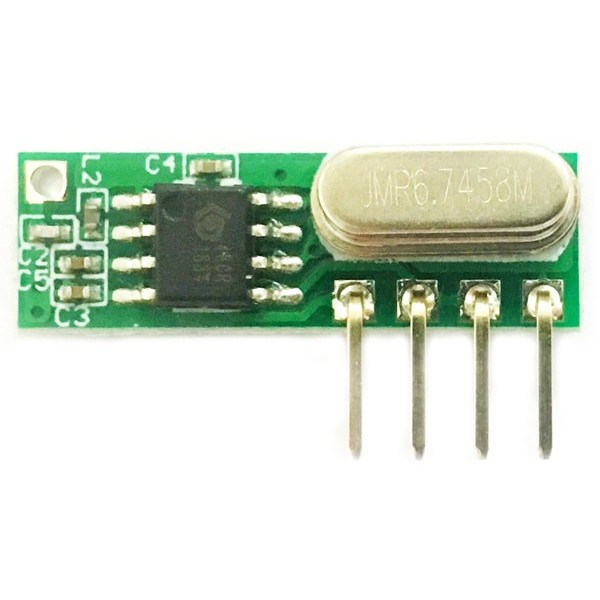

JMR RXB45 433MHz RF Receiver Module

JMR RXB45 433MHz RF Receiver Module
JMR RXB45 433MHz RF Receiver Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005491
€2.25
Ex Tax: €1.86

A small RF receiver module.

Note: An external antenna is required for this module: 433MHz Antenna.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over JMR RXB45 433MHz RF Receiver Module

This product has 0 review(s) in total.

Specifications

General
Brand JMR
Manufacturer model/SKU RXB45-433M
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 70
General physical appearance
Main color Green
Weight [g] 1
Dimension X [mm] 23
Dimension Y [mm] 7.5
Mounting options Pin headers
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.8
Maximum supply voltage [V DC] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) Digital
Wireless communication
Interface(s) RF (general)
RF receiver/transmitter Receiver
RF frequency [MHz] 433
Maximum RF transfer speed [kb/s] 2.4
Sensitivity RF receiver [dBm] -115
(50ohm antenna, 1kb/s)
RF modulation ASK
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
RF antenna connector Through hole solder pin
Package contents
Package contents 1x RF Receiver Module
