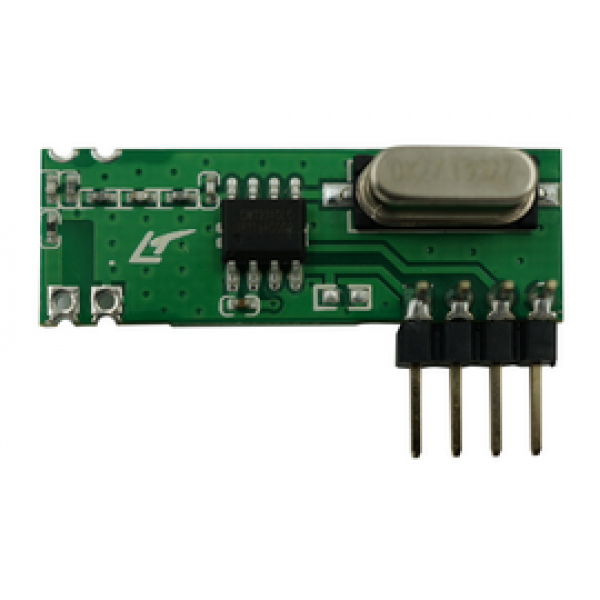

HopeRF RFM210LCF 433MHz RF receiver

This receiver is a lot more sensitive than the receiver from the standard 433MHz kit that we also offer.
This way you can receive better signals from other 433MHz transmitters.

Specifications:

• Voltage: 1.8 - 3.6V DC
• Power (in use): 3.9mA
• Receiver Frequency: 433.92MHz
• Receiver sensitivity: -114dBm

You have to attach the antenna yourself. Use a simple 17cm straight copper wire for this.
A ready-made antenna is also available. You can find it here: 433MHz Antenna.

Note:  For correct operation, the SHUT/SDN pin must be connected to the ground/min. For sleep mode, it must be connected to the Vcc.
