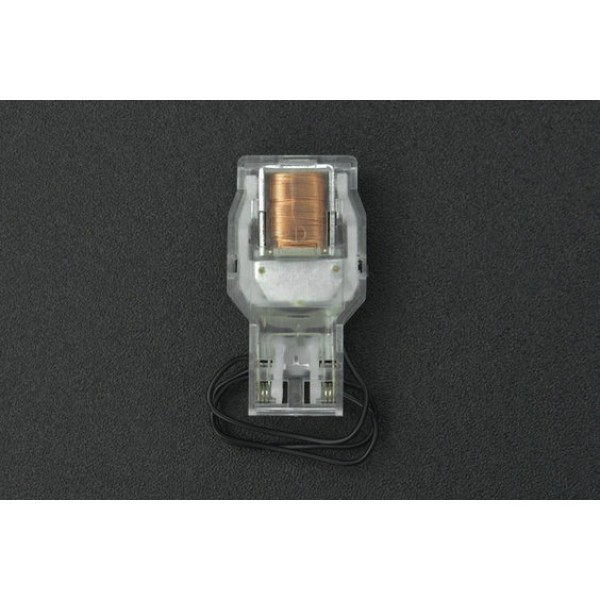

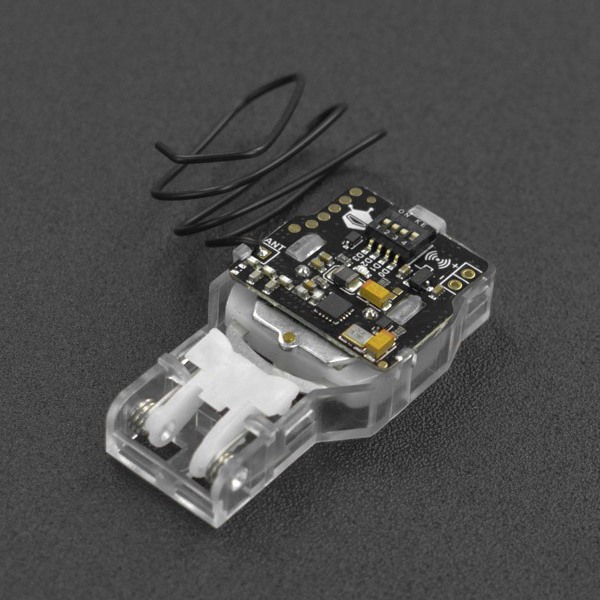

DFRobot Self-powered Wireless Switch - 433MHz

DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
DFRobot Self-powered Wireless Switch - 433MHz
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004597
Based on 0 review(s) - Write a review
€10.50
Ex Tax: €8.68
Add to Cart
Add to wishlist

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Self-powered Wireless Switch - 433MHz

This product has 0 review(s) in total.

Tags: RF , Modules , DFRobot Self-powered Wireless Switch - 433MHz , 004597 , DFRobot , TEL0146 , Enclosure , Manual switch , RF (general)

Specifications

General
Brand DFRobot
Manufacturer model/SKU TEL0146
Features Enclosure
Manual switch
General physical appearance
Main color Colorless/transparent
Weight [g] 16
Dimension X [mm] 47
Dimension Y [mm] 25
Dimension Z [mm] 11
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Wireless communication
Interface(s) RF (general)
Maximum communication distance [m] 40
RF receiver/transmitter Transmitter
RF frequency [MHz] 433
Maximum RF transfer speed [kb/s] 10
RF modulation OOK
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 1
Number of poles per channel 1
Number of fixed (on-off) positions per channel 1
Number of spring-back (reset) positions per channel 0
Contact(s) NO (normally open)
Lifespan 100000
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
RF antenna connector Built-in antenna
Enclosure
Material Plastic (unknown material)
Package contents

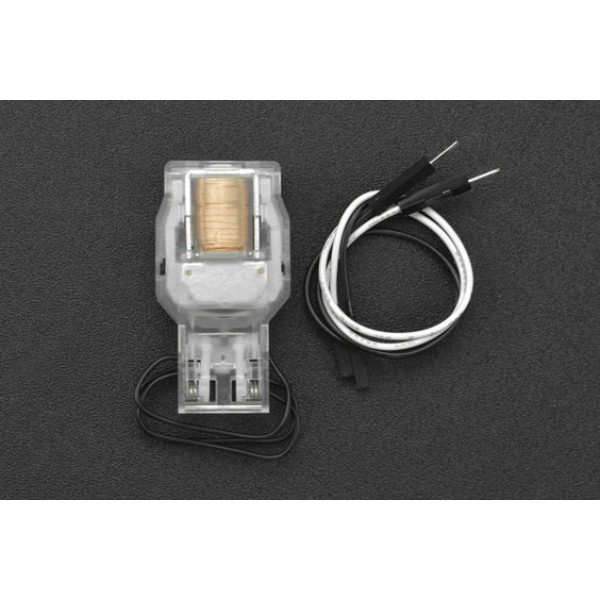

Package contents 1x Self-powered Wireless Switch - 433MHz
