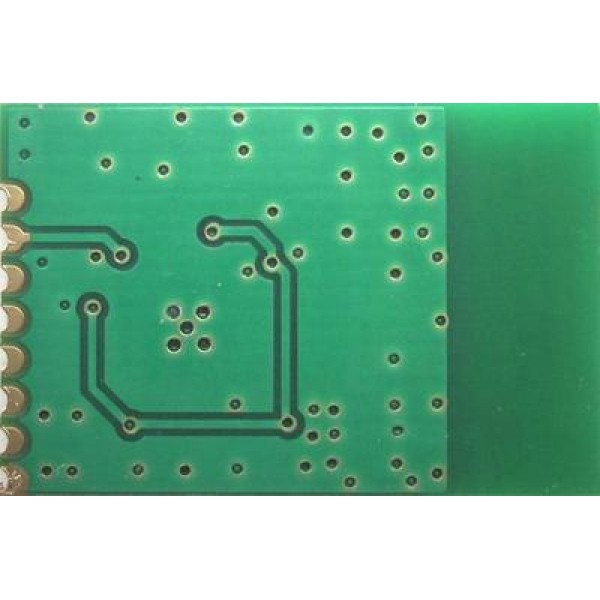

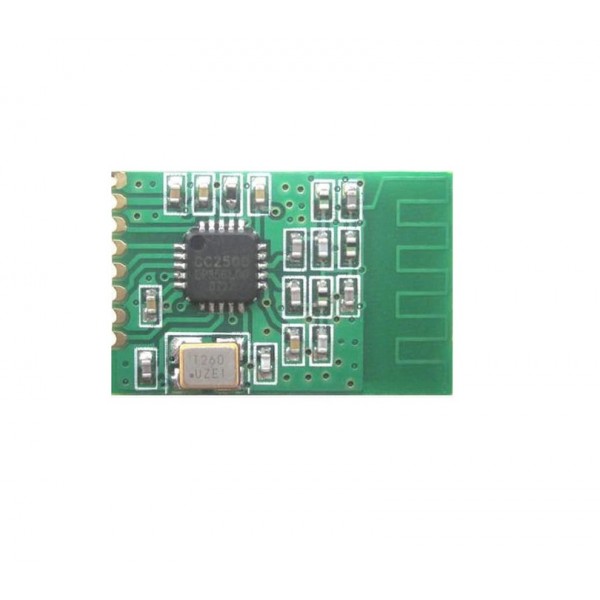

CC2500 Wireless RF Module - 2.4GHz - PCB

An easy wireless RF communication module with the TI CC2500 chip that can use the various bands. The module works through SPI communication. This RF board has a low power consumption, so it will be able to work on a power supply for a long time without having to charge it.

Specifications:

• Voltage: 1.8 - 3.6V DC
• Effective frequency range: 2400 - 2483.5MHz
• Current (max): <20mA
• Sleep mode power consumption: 500 - 900nA
• Supports OOK, 2-FSK, GFSK, MSK modulation
• Sensitivity of -104dBm at 2400 baud
• Maximum speed: 500Kbps
• Working temperature: -40 to 85°C
• Built-in antenna
• PCB dimensions: 12x18mm
• Pinout (pin 1 is the pin that is all the way on the corner):
  • 1: GND
  • 2: 3.3V
  • 3: MOSI
  • 4: RFSCL
  • 5: MISO
  • 6: GDO2
  • 7: GDO0
  • 8: RFCS

Package contents:

• 1x CC2500 wireless RF module - PCB

See the following page for more information about the chip included in this module: Ti_CC2500.
