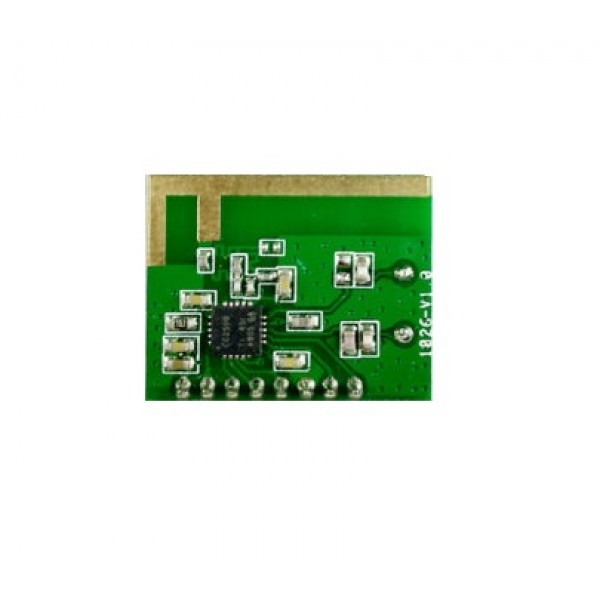

CC2500 Wireless RF Module - 2.4GHz

An easy wireless RF communication module with the TI CC2500 chip that can use the various bands. The module works through SPI communication.

Specifications:

• Voltage: 1.8 - 3.6V DC
• Effective frequency range: 2400 - 2483.5MHz
• Current (max): <20mA
• Supports OOK, 2-FSK, GFSK, MSK modulation
• Sensitivity of -104dBm at 2400 baud
• Maximum speed: 500Kbps
• Operating temperature: -40 to 85°C
• Built-in antenna

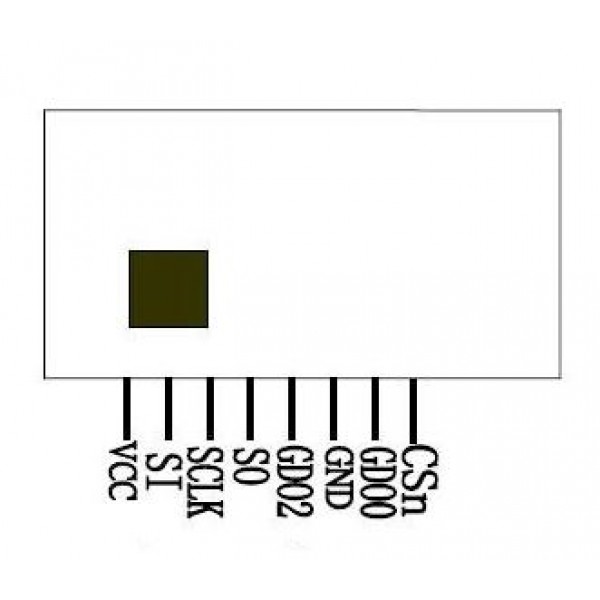

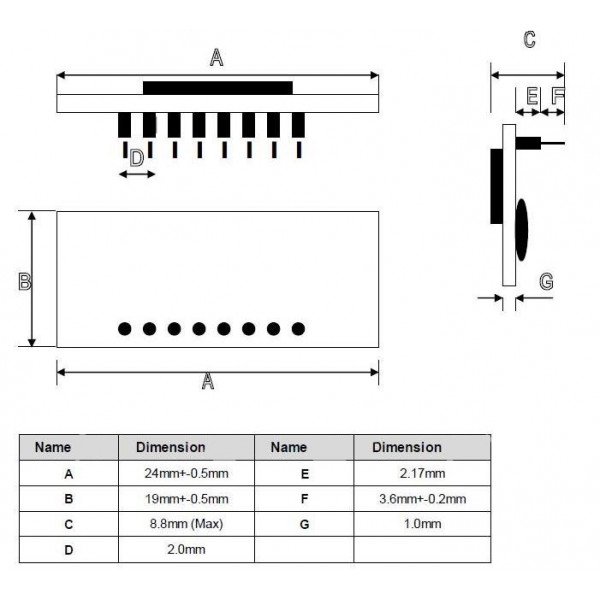

• For the pinout and dimensions of this module, see images

Package contents:

• 1x CC2500 wireless RF module

See the following page for more information about the chip included in this module: Ti_CC2500.
