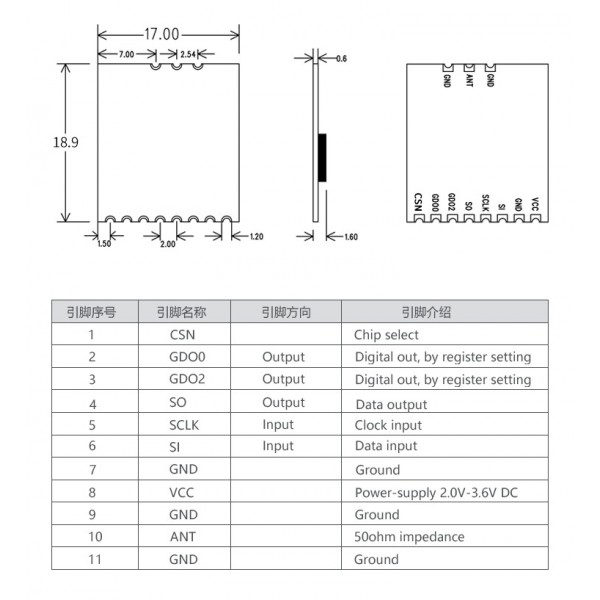

CC1101 RF Transceiver Module - 868MHz - SMD

CC1101 RF Transceiver Module - 868MHz - SMD
CC1101 RF Transceiver Module - 868MHz - SMD
CC1101 RF Transceiver Module - 868MHz - SMD
CC1101 RF Transceiver Module - 868MHz - SMD
CC1101 RF Transceiver Module - 868MHz - SMD
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007687
Based on 0 review(s) - Write a review
€4.25
Ex Tax: €3.51
Add to Cart
Add to wishlist

An RF transceiver module that can be used to realize wireless communication.

Note: No antenna is included.

Please login or register to review

Reviews Over CC1101 RF Transceiver Module - 868MHz - SMD

This product has 0 review(s) in total.

Tags: RF , Modules , CC1101 RF Transceiver Module - 868MHz - SMD , 007687 , No brand , SPI , RF (general)

Specifications

General
Brand No brand
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
General physical appearance
Main color Green
Weight [g] 1
Dimension X [mm] 19
Dimension Y [mm] 17
Dimension Z [mm] 1
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.8
Maximum supply voltage [V DC] 3.6
Indication (deep-)sleep current [μA] 0.2
Minimum IO-pin input voltage [V] 1.8
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Wireless communication
Interface(s) RF (general)
Maximum communication distance [m] 200
RF chip/SoC CC1101
RF receiver/transmitter Receiver
Transmitter
RF frequency [MHz] 868
Sensitivity RF receiver [dBm] -109
Maximum RF transmit power [mW] 15.85
RF modulation ASK
MSK
OOK
GFSK
2-FSK
4-FSK
Connectors
Power supply connector(s) Solder pin(s) (SMT)
IO-connector(s) Solder pin(s) (SMT)
RF antenna connector Solder pin (SMT)
Package contents
Package contents 1x CC1101 module
