433MHz RF Remote with receiver

Availability: Directly available from warehouse in Eindhoven
SKU: 000711

Based on 2 review(s) - Write a review

€5.00

Ex Tax: €4.13

10 or more €4.75

20 or more €4.50

50 or more €4.25

100 or more €4.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

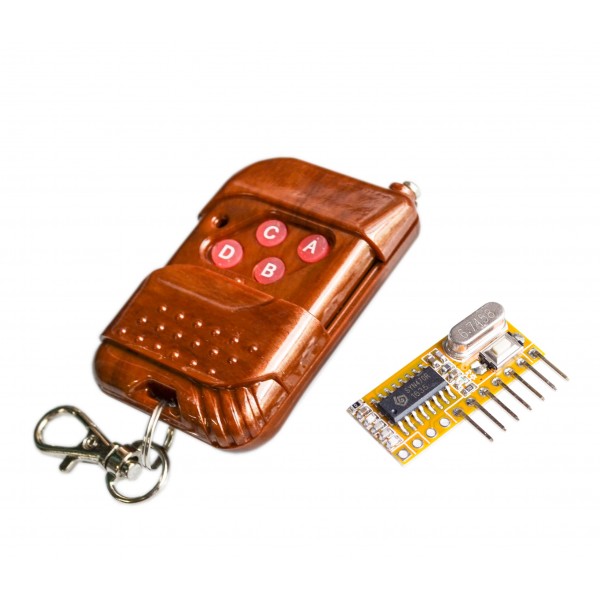

You can easily control an input with the remote control and the receiver. The remote control has 4 buttons that can control 4 outputs on the receiver. The 12V battery for the transmitter is included. This is already in the remote control. A red LED is present on the remote control as feedback when a button is pressed.

The remote control uses the PT2262 protocol to send signals via an 8-bit channel that can be set with solder bridges. It uses simple one-way communication and is therefore insecure, for example for garage doors. Remotes on the same channel transmit the same signal. By default, they are set to 00000000 or 11111111.

The receiver in this set can detect the protocol of the remote control. During the pairing process, one remote control can be used to program the receiver. Once programmed, the receiver will receive signals from all remote controls that are configured the same way.

Specifications:

Voltage: 3.3 - 5.5V
Power consumption: 3.8-4.1mA (at 5V)
Current (pin): 15mA (low level), 12mA (high level)
Modulation: AM (ALSO)
Working temperature: -30 ° C ~ + 85 ° C
Sensitivity of the receiver (dBm): -110dBm
Frequency: 433.92MHz
RXC6 multi-receiver with learning mode (default not set!)
Compatible with (PT)2260, (PT)2262, (PT)2240, (PT)2264 and (EV)1527 coding
433MHz antenna included
Dimensions (LxWxH): 28*12.5*5mm

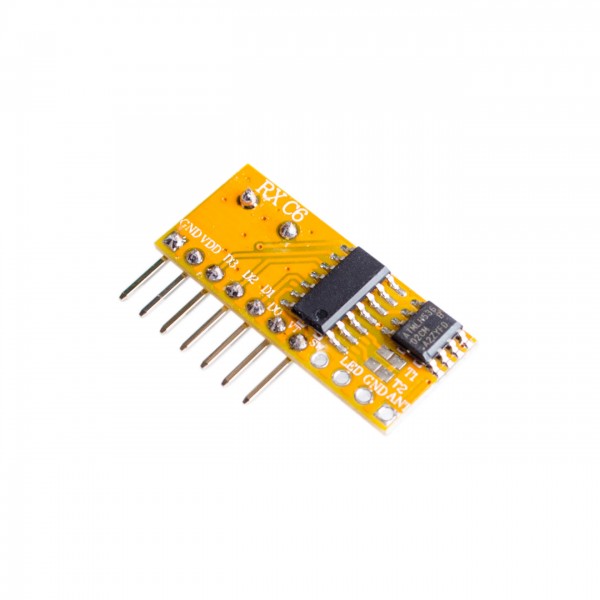

Pin	Description
GND	Ground/min/earth connection
VDD	5V connection
D3	Output for A button
D2	Output for B button
D1	Output for C button
D0	Output for D button
VT	This output becomes high when one of the signals is received
SW	Input for external button (is connected to button on the receiver)
LED	Output signal for external LED (ballast resistor needed!)
GND	Ground for the antenna (not required, depends on antenna type)
ANT	Connection for the antenna

Note: The order of buttons A to D on the remote control may differ per delivery. This makes it possible that the above pin description for pin D0 to D3 deviates!

Settings for solder planes T1 and T2:

T1 and T2 not connected: Reset function (pin only high when button is pressed)
T2 connected: Toggle function (pin becomes high when pressed and low when button is pressed again)
T1 connected: Interlock function (pin becomes high when pressed and only low when one of the other three buttons is pressed)

Set receiver (learn mode):

Press and hold the button on the receiver for about 2 seconds until the LED lights up
Release the button, the LED will turn off now
Press a button on the remote control, the receiver will indicate with a 4x flashing LED that learning is successful
Now you can use the remote control in combination with the receiver!
