Name: Waveshare SX1262 LoRa Node Module for Raspberry Pi Pico - 868MHz - WS-20682
Brand: Waveshare
SKU: 004748
Price: 15 EUR
Availability: InStock

Waveshare SX1262 LoRa Node Module for Raspberry Pi Pico - 868MHz

Availability: Directly available from warehouse in Eindhoven
SKU: 004748

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A Waveshare LoRa module with a back-up battery.

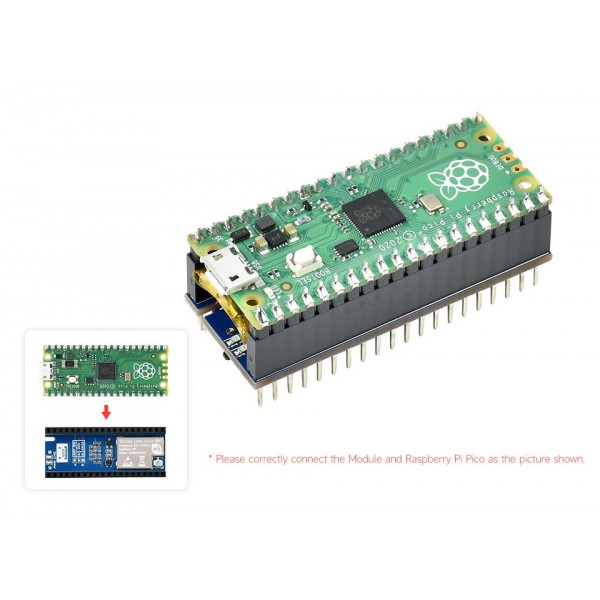

Note: No Raspberry Pi Pico is included.

Note: The imprint may be wrong, it may indicate that it is the 433MHz version, however it is in fact the 868MHz version.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare SX1262 LoRa Node Module for Raspberry Pi Pico - 868MHz

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare SX1262 LoRa Node Module for Raspberry Pi Pico - 868MHz , WS-20682 , LoRa

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20682
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Battery charger Battery protection circuit Battery
General physical appearance
Main color	Blue
Weight [g]	30 (complete kit)
Dimension X [mm]	52
Dimension Y [mm]	21
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
Experiment PCB friendly	Yes
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3 (via Raspberry Pi Pico 3V3 pin) 5 (via Raspberry Pi Pico VBUS pin for battery charging)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Wireless communication
Interface(s)	LoRa
LoRa chip/SoC	SX1262
LoRa frequency [MHz]	868
Battery circuit
Battery charger chip/SoC	MCP73831
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	Yes (note: inside Li-Po battery)
Safety features	Short circuit Overvoltage Overcurrent Undervoltage
Battery
Chemistry	Li-Po
Rechargeable	Yes
Capacity [mAh]	600
Nominal cell voltage [V]	3.7
Maximum cell voltage [V]	4.2
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Battery connector(s)	Molex Picoblade (compatible) male
LoRa antenna connector	IPEX MHF 1/uFL male
Package contents

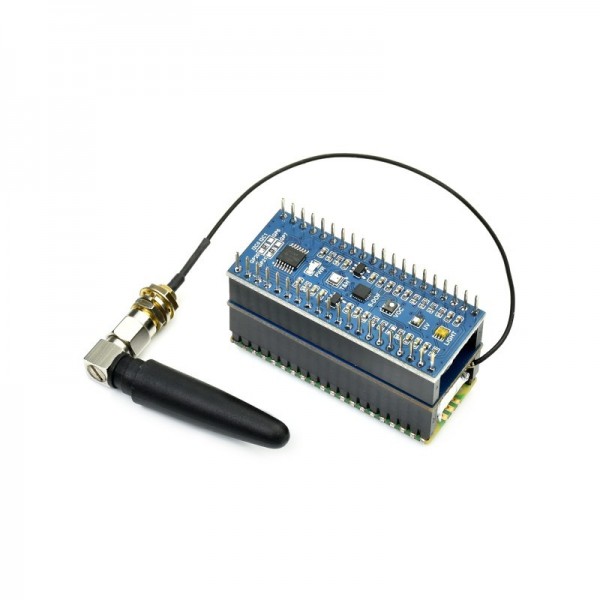

Package contents	1x SX1262 LoRa Node Module 1x Li-Po battery 1x SMA antenna 1x uFL to SMA adapter
