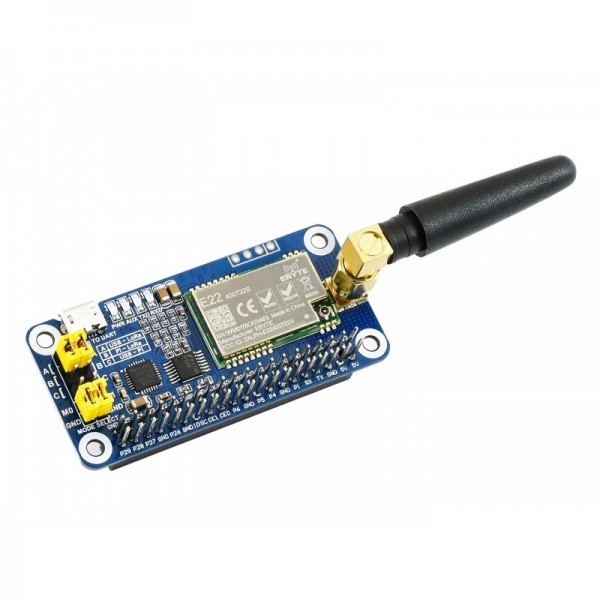

Waveshare SX1268 433MHz LoRa HAT - for Raspberry Pi
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004798
€22.50
Ex Tax: €18.60
Your shopping cart is empty!

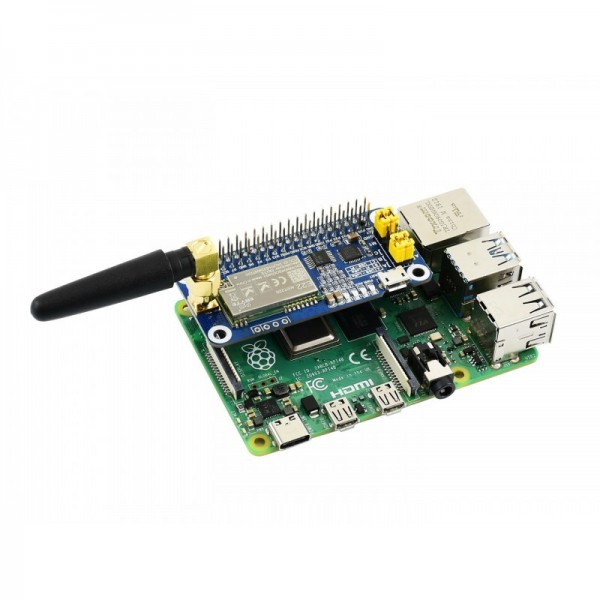

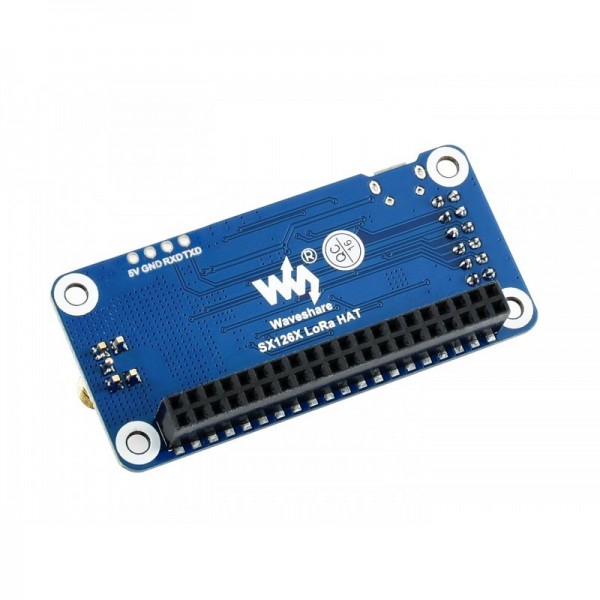

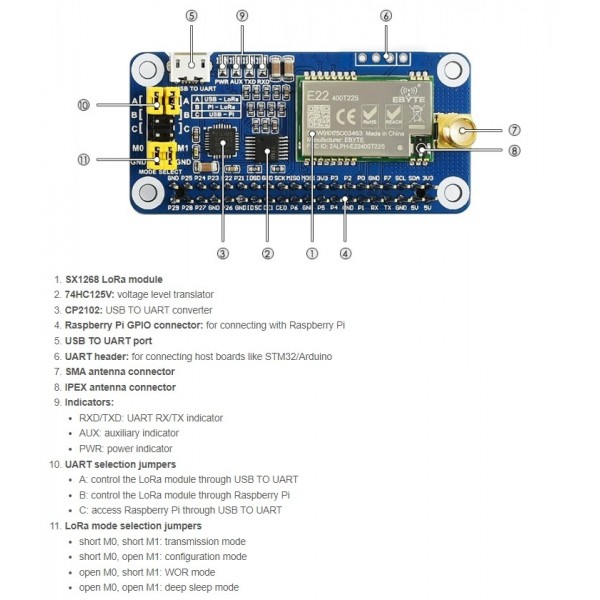

A LoRa module from Waveshare that can be used in several different ways. The module has the form factor of a Raspberry Pi SBC Hat so it is easy to use with a Raspberry Pi. In addition, the module also has a USB connection with which it can be connected directly to a PC. Finally, the module can be used with almost any microcontroller via the pin headers or though hole solder pins. Due to the built-in level converter/buffer, both 3.3V and 5V microcontrollers can be used. With the jumpers you can set how the UART communication is forwarded.
Note: Raspberry Pi is not included.
Note: The LoRa module uses its own proprietary protocol. This means that this modules can only communicate with each other and therefore not with other LoRa(WAN) networks/modules.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 16804 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 23 (Hat + antenna) |

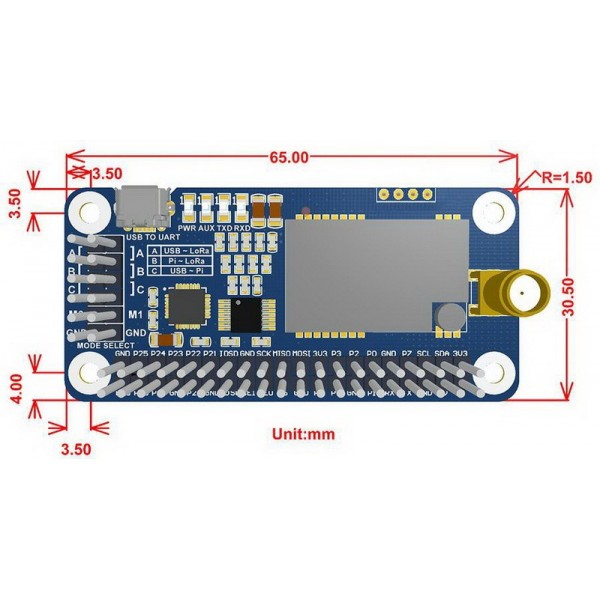

| Dimension X [mm] | 65 |
| Dimension Y [mm] | 31 |
| Mounting options | Pin headers Mounting hole(s) |
| Form factor | Module (general) Raspberry Pi SBC layout/HAT |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART USB CDC |
| Default baudrate | 9600 |
| USB to serial converter | CP2102 |
| Wireless communication | |
| Interface(s) | LoRa |
| LoRa chip/SoC | SX1268 |
| LoRa frequency [MHz] | 433 |
| Connectors | |
| Power supply connector(s) | Micro USB female Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Micro USB female Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm) |
| LoRa antenna connector | SMA female IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x LoRa Hat 1x LoRa SMA antenna 1x USB-A to micro USB cable 2x Spacer 2x Bolt 2x Nut |
