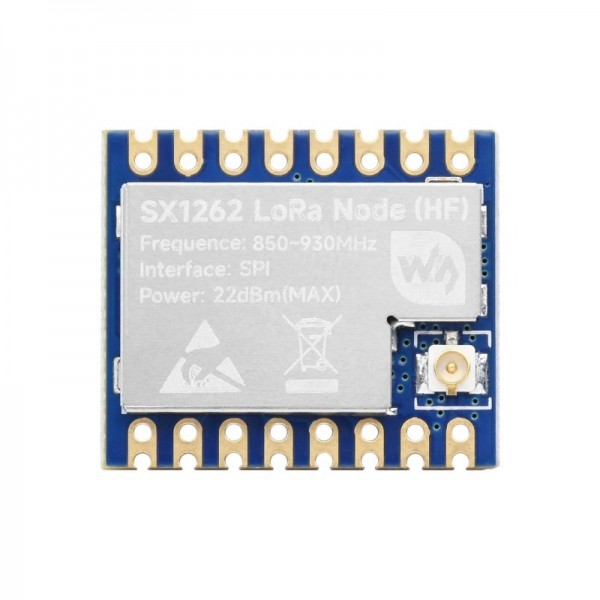

Waveshare Core1262-HF LoRa Module - 868MHz - SX1262
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004811
€9.50
Ex Tax: €7.85
Your shopping cart is empty!
A LoRa module from Waveshare.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 20855 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 2 |

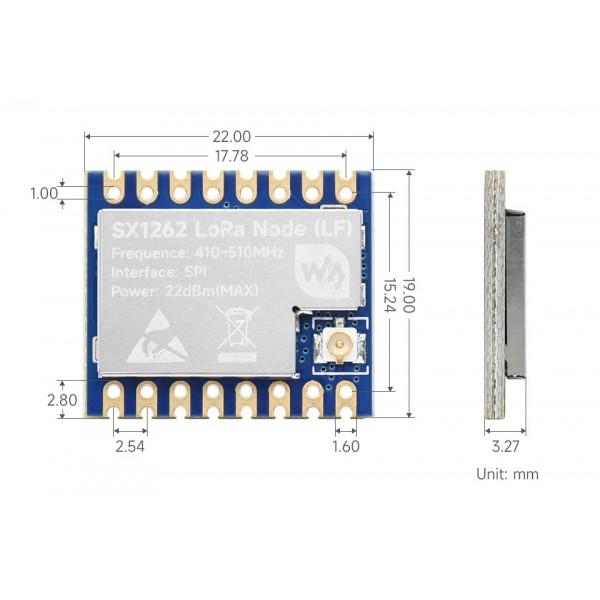

| Dimension X [mm] | 22 |
| Dimension Y [mm] | 19 |
| Dimension Z [mm] | 3.3 |
| Mounting options | SMT |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 3.3 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | SPI |
| Wireless communication | |
| Interface(s) | LoRa |
| LoRa chip/SoC | SX1262 |
| LoRa frequency [MHz] | 868 |
| Connectors | |
| Power supply connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| LoRa antenna connector | Solder pin (SMT) IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x Core1262-HF |
