Unexpected Maker LoRa E5 Shield - 868MHz

Availability: Directly available from warehouse in Eindhoven
SKU: 006151

Based on 0 review(s) - Write a review

€22.50

Ex Tax: €18.60

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

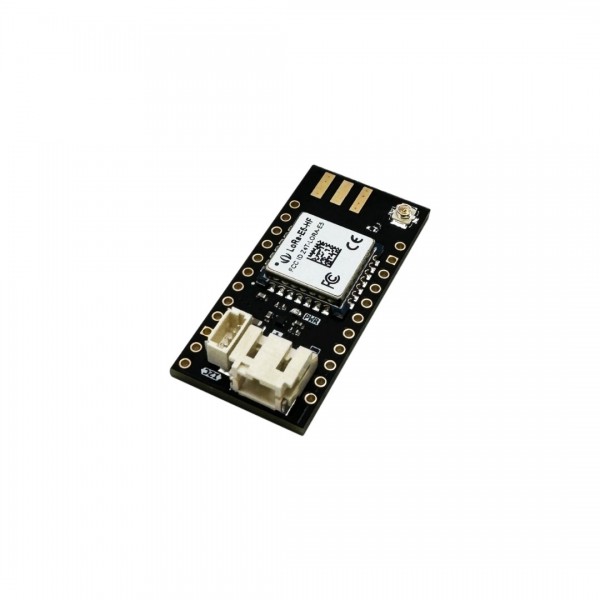

A LoRaWAN shield for the TinyPICO, TinyS2/S3/C6 or ProS3 development boards. The shield is based on the LoRa-E5 module from Seeed Studio. Furthermore, the shield has two antenna options and a connector for a Li-ion/Li-Po battery (module has no charging circuit).

See the following page for more information: Wiki

Please login or register to review

Reviews Over Unexpected Maker LoRa E5 Shield - 868MHz

Average Rating:

This product has 0 review(s) in total.

Tags: Unexpected Maker LoRa E5 Shield - 868MHz , SH-LORA-E5 , Modules

Specifications

General
Brand	Unexpected Maker
Manufacturer model/SKU	SH-LORA-E5
General physical appearance
Main color	Black
Weight [g]	4
Dimension X [mm]	37
Dimension Y [mm]	18
Form factor	Module (general) TinyPICO layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Default baudrate	9600
Wireless communication
Interface(s)	LoRa
LoRa chip/SoC	STM32WLE5 (SX1262)
LoRa frequency [MHz]	868
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)

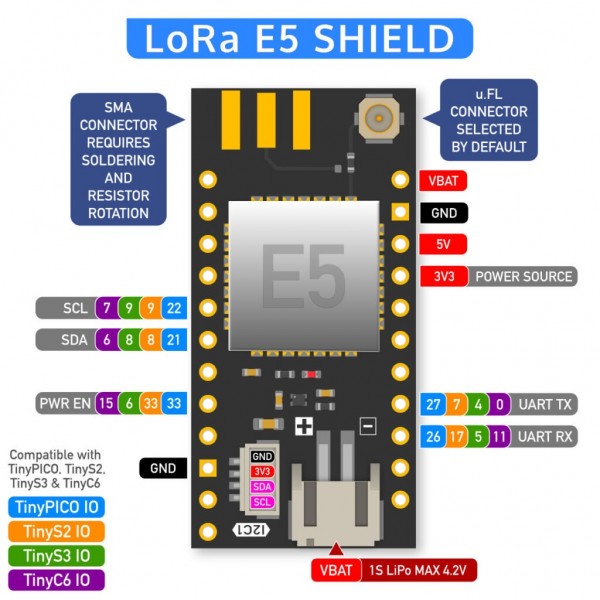

IO-connector(s)	JST-SH (compatible) male Through hole solder pin(s) (2.54mm)
Battery connector(s)	JST-PH (compatible) male
LoRa antenna connector	IPEX MHF 1/uFL male SMA female (requires modification)
Package contents

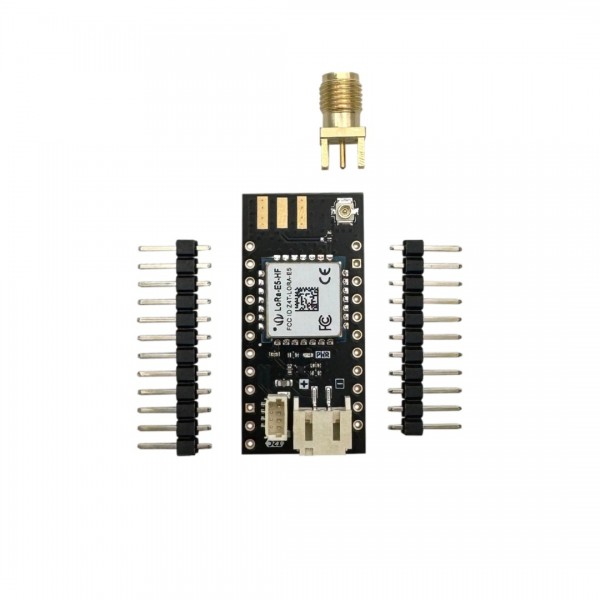

Package contents	1x LoRa E5 shield 1x Male pin header 11p 1x Male pin header 12p 1x SMA connector
